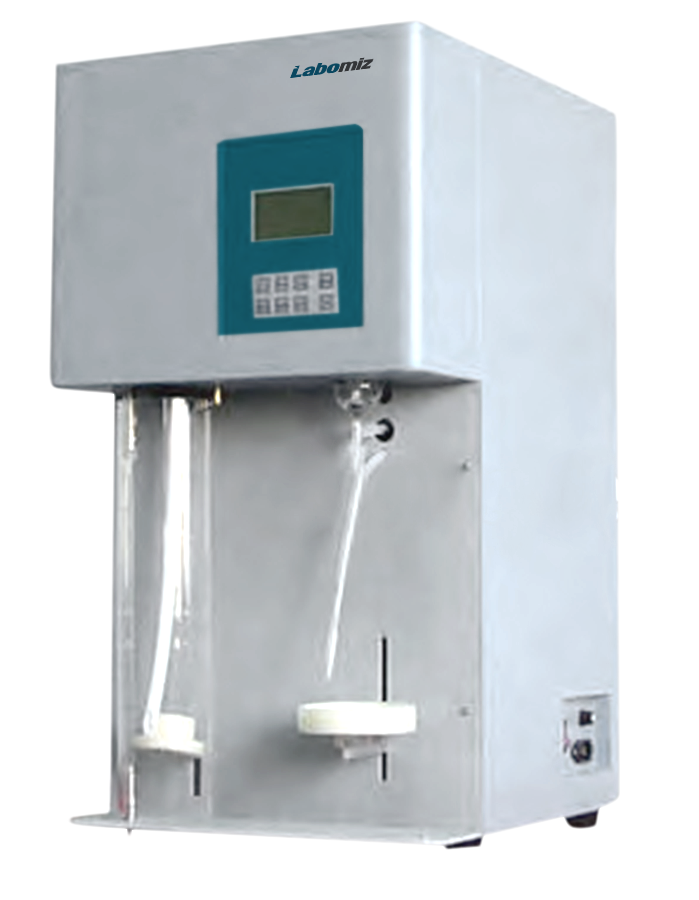

Description : Automatic kjeldahl distillation unit MAKD-1A is a microprocessor controlled automated distillation unit with precise measurement accuracy. Incorporated with large LCD screen display with automated function of acid, alkali addition and distillation time set up for user convenience. ABS anticorrosive board prevents corrosion from chemical reagents and avoids mechanical damage of the unit.

Specifications :

Measuring range	0.1 mgN ~ 200 mgN (mg nitrogen)
Distillation speed (according to sample amount)	5 min/sample ~ 15 min/sample
Recovery rate (relative error, include digestion process)	≥ 99.5 %
Repetition rate	relative standard deviation < ± 1%
Sample capacity	Solid: 0.2 g ~ 2 g Semisolid: 2 g ~ 5 g Liquid: 10 mL ~ 25 mL
Cooling water consumption	3 L/min
Water in mode	Tap water and distilled water
Water supply	water pressure > 1.5 MPa water temperature < 20 °C
Power	1000 W
Voltage	AC 220 V/50 Hz
Dimensions	430 x 360 x 670 mm
Weight	25 kg

Features : Automatic working mode (consistent results) Control mode (Manual and automatic) as per user need Operational mode - LCD display and touch buttons ABS anticorrosive working area (acid and alkali proof) Control of distillation, water addition, water level and water supply cutoff (automated) Material: plastic spray steel box Power off function (fault detection) Alarm: steam generator water shortage, water level fault detection Protective cover while distilling (operator safety) Removable drip tray (easy cleaning)

Applications: Used in food and feed, environmental monitoring, quality control, research, biotechnology, pharmaceutical industries for protein estimation, analysis of soil, water, test of ammonium, fatty acids, volatile acids, phenols etc.
