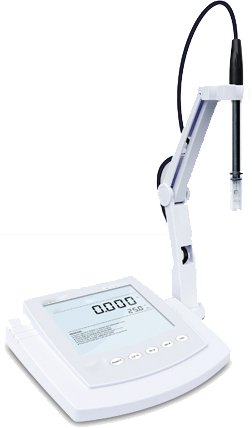

Description : Benchtop Conductivity Meter MBCM-1A with 1 to 5 points push button conductivity calibration, automatically recognizes calibration standards. Large LCD display shows settings and measurement values. Temperature calibration by manual method improves the accuracy of conductivity meter.

Specifications :

Conductivity	Range: 0.01~20.00, 200.0, 2000μS/cm, 20.00, 200.0mS/cm Resolution: 0.001, 0.01, 0.1, 1 Accuracy: ±0.5% F.S. Calibration Points: 1 to 5 points Calibration Solutions: 10μS/cm, 84μS/cm, 1413μS/cm, 12.88mS/cm, 111.8mS/cm
TDS	Range: 0~10.00, 100.0, 1000ppm, 10.00, 200.0ppt Resolution: 0.01, 0.1, 1 Accuracy: ±1% F.S. TDS Factor: 0.1~1.0 (default 0.5)
Salinity	Range: 0.00~42.00psu, 0.00~80.00ppt Resolution: 0.01 Accuracy: ±1% F.S.
Resistivity	Range: 0.00~20.00MΩ Resolution: 0.01 Accuracy: ±1% F.S.
Temperature	Range: 0~105°C/32~221°F Resolution: 0.1°C/0.1°F Accuracy: ±0.5°C/±0.9°F Offset Calibration: 1 point, reading ±10°C
Temperature Compensation	0~100°C, manual or automatic
Temperature Coefficient	Linear (0.0~10.0%/°C), pure water
Reference Temperature	20/25°C
Cell Constant	K=0.1, 1, 10 or custom
Stability Criteria	Low or high
Calibration Due Alarm	1 to 31 days or off
Calibration Factor Display	Yes
Hold Function	Manual or auto-endpoint
Memory	500 data sets
Communication Interface	USB
Connector	6-pin nimi-DIN, 3.5 mm jack socket
Display	Custom LCD (125 × 100 mm)
Power	DC5V, using AC power adapter, 220V/50Hz
Dimensions (L × W × H)	210 × 188 × 60 mm
Weight	1.5kg

Features : 1 to 5 points calibration with automatic recognition for conductivity standards Automatic electrode diagnosis shows the calibration points and factors Selectable cell constant, reference temperature, TDS factor, linear and pure water compensations, seawater and practical salinity measurement modes Automatic temperature compensation ensures accurate readings over the entire range Auto-Read function senses and locks the measurement endpoint Calibration due alarm prompts user to calibrate the meter regularly Setup menu allows setting the number of calibration points, stability criteria, temperature unit, date and time, etc. Reset function automatically resumes all settings back to the factory defaults Expanded memory stores or recalls up to 500 data sets USB communication interface for data transfer and timed interval readings

Applications: Used to test Conductivity, TDS values of different type of liquid such as pure, hard/low conductivity water, distilled water. Also used in water purification labs, water testing and management plants, and water processing and packaging units for quality and research purpose
