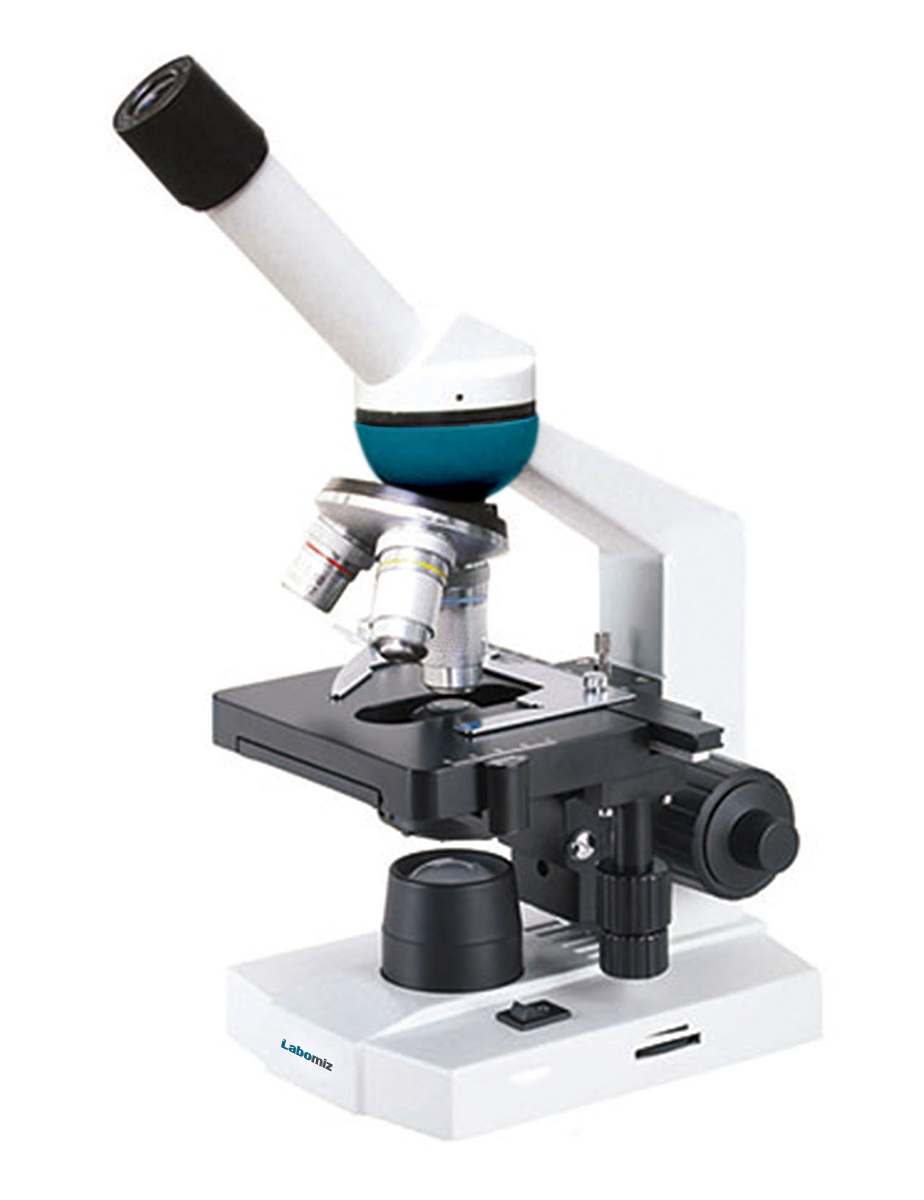

Description : Biological Microscope MBIM-3A is an instrument, deigned with wide field eyepiece and occupies small space. Optical head with inclination and 360° swivel function reduces fatigue while viewing. LED illumination system enables specimen viewing with their natural colors. Various optional accessories upgrades unit and makes it more flexible for advanced application.

Specifications :

Viewing head	Monocular
Viewing head inclination	Inclined at 45° , 360° rotatable
Eyepiece	WF10X/18 mm
Objective	Achromatic objective 4X, 10X, 40X (S)
Nosepiece	Triple
Stage	Plain stage with slide clips 110 mm x 120 mm
Focusing	Coaxial coarse and fine adjustment Moving range 10 mm
Condenser	Single lens NA 0.65 with Iris diaphragm
Illumination	1W LED Illumination ; brightness adjustable
Power supply	AC 100 V ~ 220 V (Power adapter) DC 5 V (Input voltage)
Dimension	280 x 200 x 400 mm
Weight	4 kg

Features : Tripe nosepiece for high resolution image High contrast achromatic objective Spare parts: dust cover Plane stage supports microscope slides

Applications: Used in academic, research, physiology, biology, clinical areas for sample analysis, to observe cell, tissues and other specimens.
