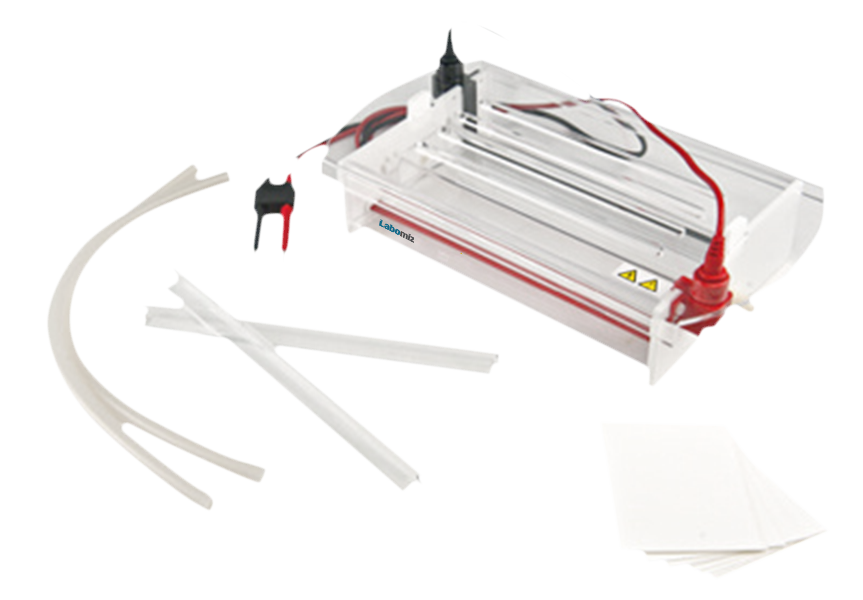

Description : Cellulose acetate membrane electrophoresis unit MCAE-1B is a double-bridge style design horizontal system which produces well defined bands for clinical electrophoresis. It includes adjustable rod to meet different electrophoretic distance according to the length. The unit is integrated with cooling pipe and ready to use cellulose acetate membrane for rapid screening under constant temperature.

Specifications :

Bridge dimension (W x L)	66 x 250 mm 82 x 250 mm
Cell membrane dimension (W x L)	70 x 90 cm
Buffer capacity	560 mL
Thickness of cellulose acetate membrane	< 1 mm
Dimensions (L x W x H)	318 x 175 x 65 mm
Weight	1 kg

Features : Compact high resolution unit Automatic power off when lid is removed Unfolded electrodes (easy maintenance) Adjustable support rod for acetate strip adjustment

Applications: Used in education institutes, diagnostic laboratories and research for qualitative and quantitative analysis of serum, proteins for monoclonal gammopathies, urine proteins, isoenzymes, lipo proteins and glycoproteins.

Standard Accessories: Sr No Accessory name Quantity 1 Body tank with electrode 1 2 Adjusting rod 2 3 Cellulose acetate membrane 10 4 Cooling pipe 2 5 Electrical cables 1
