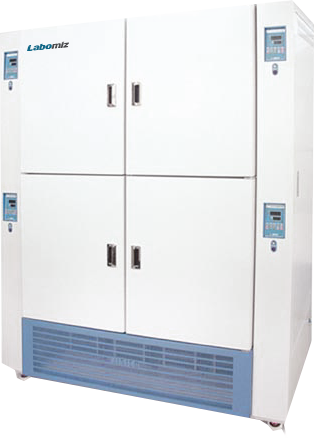

Description : Multi-Chamber Incubator MCI-2A is equipped with forced convection system for a uniform temperature distribution, heat exchange and gentle air flow in chamber. Separate microprocessor PID auto-tuning controller controls four chambers individually and variables like temperature, speed and flow. Safety tempered glass inner door prevents heat loss and provide clear sample visualization. Safety devices include ELB ( elastic load balancing ) and self-diagnosis functions such as memory error, overheating, SSR and sensor short circuit for end user safety.

Specifications :

Capacity	920 L ( 230 L × 4 chambers )
Chamber	4
Shelves ( Each chamber )	3
Total shelves ( 4 chambers )	12
Environmental temperature range	5 °C ~ 30 °C
Ambient temperature range	0 °C ~ 60 °C
Temperature accuracy	± 0.5 °C to ±1.0 °C
Thermocouple	Pt 100 Ω
Heater power	1400 W ( 340 W × 4 chambers )
Fan motor	20 W
Refrigerator compressor	1/4 hp
Power ( 1 phase )	AC 220 V 50 Hz /60 Hz
Chamber dimensions ( W × D × H )	600 × 620 × 615 mm × 4 chambers
Exterior dimensions ( W × D × H )	1350 × 790 × 1918 mm
Net weight	250 kg

Features : Double-door system Solid-state relay (SSR) type temperature regulator (an electronic switching device) Each chamber operates at different conditions Magnetic closure with positive sealing gasket (outer door) Ni-Cr heating element Digital display for parameters view and control Stainless steel shelves (interior material) Steel plate with powder coated finish (exterior material)

Applications: Used for general laboratory applications like bacterial research, microbiology, pharmaceutical, gene cloning, food and beverage testing.
