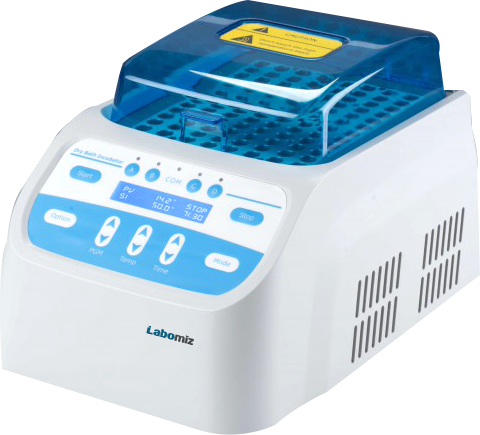

Description : Dry bath incubator MDBI-3A is a microprocessor controlled incubator unit with a temperature range of 5°C to 110°C. Features an aluminium heating block for rapid heating of samples adding to its usage as a water bath.

Specifications :

Block quantity	4
Temperature setting range	0°C ~ 110°C
Temperature control range	RT +5°C ~ 110°C
Time range	1min ~ 99h59min
Temperature Accuracy	≤±0.3°C at 37°C
Display Accuracy	0.1°C
Temperature Uniformity	≤±0.3°C at 37°C
Heating Time	≤20min(from 25°C to 110°C)
Auto Heating	Yes
Timing independently for each group	Yes
Voltage	AC220V or AC110V
Frequency	50/60Hz
Fuse	250V 3A Ф5×20
Power input	500W
Dimensions (W x H x D) mm	370x254x228
Weight (KG)	8

Features : LCD display, simple interface Easy to set up and use Blue transparent lid prevents samples splashing out Accurate temperature control, high stability With four groups(A/B/C/D), timing independently or simultaneously Optional blocks are available for common laboratory tubes and plates. Custom blocks are also available upon request Built-in temperature calibration function Built-in over-heating protection device, safe and reliable.

Applications: It can be widely used in the sample safeguarding, reaction of DNA amplification, electrophoresis, degeneration, solidification and different sorts of serum biochemical sample thermostatic incubation cycle.

Optional Blocks: TYPE Diameter of test tube Number of test tube 01 6mm 48 02 7mm 48 03 10mm 24 04 12mm 24 05 13mm 24 06 15mm 16 07 16mm 16 08 19mm 12 09 20mm 12 10 26mm 8 11 28mm 4 12 40mm 3 13 0.2ml centrifuge tube 48 14 0.5ml centrifuge tube 48 15 1.5ml centrifuge tube 24 16 2.0ml centrifuge tube 24 17 0.2ml PCR plate 96 18 0.2ml Elisa plate 96
