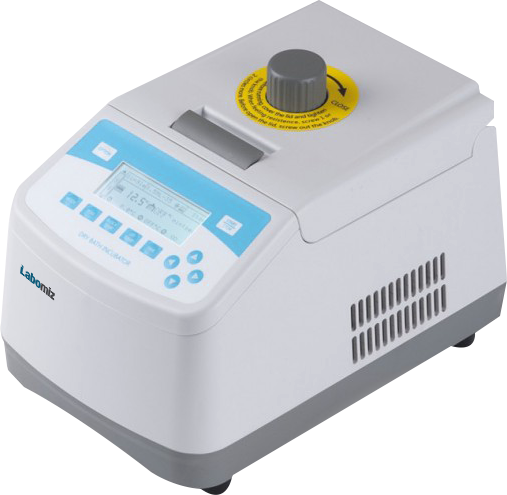

Description : Dry bath incubator MDBI-5B is a semi-conductor controlled heating & cooling instrument with automatic temperature control design. The flexible timer, constant temperature function and multi-point operation mode make it a unique and an ideal lab instrument.

Specifications :

Temperature setting range	-10°C ~ 100°C
Temperature control range	RT -25°C~100°C
Temperature Accuracy	≤±0.3 at 37°C
Time range	1 sec - 99 hrs. 59 mins
Temperature Uniformity	≤±0.3 at 37°C
Display Acuuracy	0.1°C
Heating Time	≤12min(from 25°C to 100°C)
Cooling time	≤12min(from 100°C to 25°C) ≤25min(from RT. to.-25°C)
Heating lid temp setting range	OFF~ +10°C
Heating lid temp accuracy	≤±0.5°C
Heating lid heating time	≤10min(from 25°C to 100°C)
Voltage	220 V - 240 V / 115 V
Frequency	50 Hz / 60 Hz
Power input	150 W
Dimensions (W x H x D) mm	300×200×210
Weight (KG)	4.7

Features : Instantly displays operation information on the LCD screen Has combined temperature control system and block system. Each block has a built-in temperature sensor and heating/cooling unit, ensuring that temperature control is more accurate and the heating speed is much faster Blocks are interchangeable and auto-recognized Adjustable heating lid Temperature of heating lid can be controlled Auto restart in case of power failure Built-in over-temperature protection device Built-in temperature calibration function

Applications: It can be widely used in the sample safeguarding, reaction of DNA amplification, electrophoresis, degeneration, solidification and different sorts of serum biochemical sample thermostatic incubation cycle.

Optional Blocks: TYPE Capacity Temp. range 01 35x2.0ml centrifuge tube RT -25°C~100°C 02 35x1.5ml centrifuge tube RT -25°C~100°C 03 54x0.5ml centrifuge tube RT -25°C~100°C 04 96x0.2ml PCR centrifuge tube RT -25°C~100°C 05 96x0.2ml Elisa plate RT -25°C~100°C
