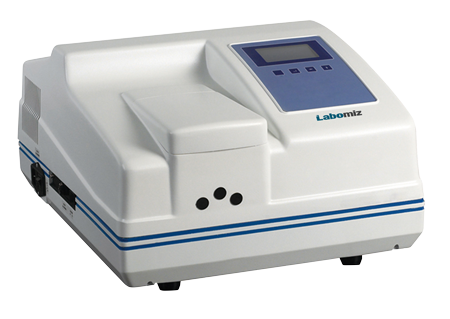

Description : Fluorescence Spectrophotometer MFLS-1A is a multifunctional light excitation and emission detector device. It operates over a linear range of working curve for systematic output. It features fully automated wavelength calibration as per the excitation.

Specifications :

Emission monochromator	Diffraction grating
Emission wavelength range	200 nm ~ 900 nm
Excitation wavelength	365 nm
Excitation and emission bandwidth	10 nm
Light source	Xenon lamp
Emission bandwidth	10 nm
Wavelength accuracy	±1 nm
Wavelength repeatability	≤ 0.5 nm
Sensitivity	Raman peak of water with quartz fluorescence cuvette S/N ≥150
Linear measurement	≥ 0.995
Stability	> 1.5% / 10 min
Response time ( 6 adjustable stages )	0.1 sec ~ 4 secs
Fluorescence display value	0.00 ~ 600.0
Power	AC 110V ± 10 %; 50 Hz AC 220 V ±10% ; 60 Hz
Dimensions ( W × D × H )	550 × 610 × 365 mm
Gross weight	14 kg

Features : Dual operation mode: Fluorescence intensity and Luminous intensity LCD display for visual monitoring Operational buttons for ease of access Emission spectrum scanning in 10 stages Off-line and On-line operational mode

Applications: Used for fluorescence analysis of samples in medical, biochemical, food and beverages, environmental science, chemistry, biology, toxicology, cytology, immunology, etc.

Optional Accessories: Sr. No. Name of the accessory 1 2 A Fuse 2 5 A Fuse 3 200 nm ~ 700 nm interference optical filter (? 25 mm) 4 Quartz fluorescence sample cell 10 mm 5 Multi-function fluorescent sample rack holder 6 Membrane sample rack 7 Powder sample rack 8 Sample cell jacket 9 Octave filters 10 200 µL micro centrifuge tube accessory 11 Up conversion fluorescent accessory

Standard Accessories: Sr. No. Name of the accessory Quantity 1 365 nm filter (Preassembled) 1 unit 2 Software package 1 unit 3 USB interface 1 unit 4 Quartz fluorescence sample cell 10 mm 1 pair
