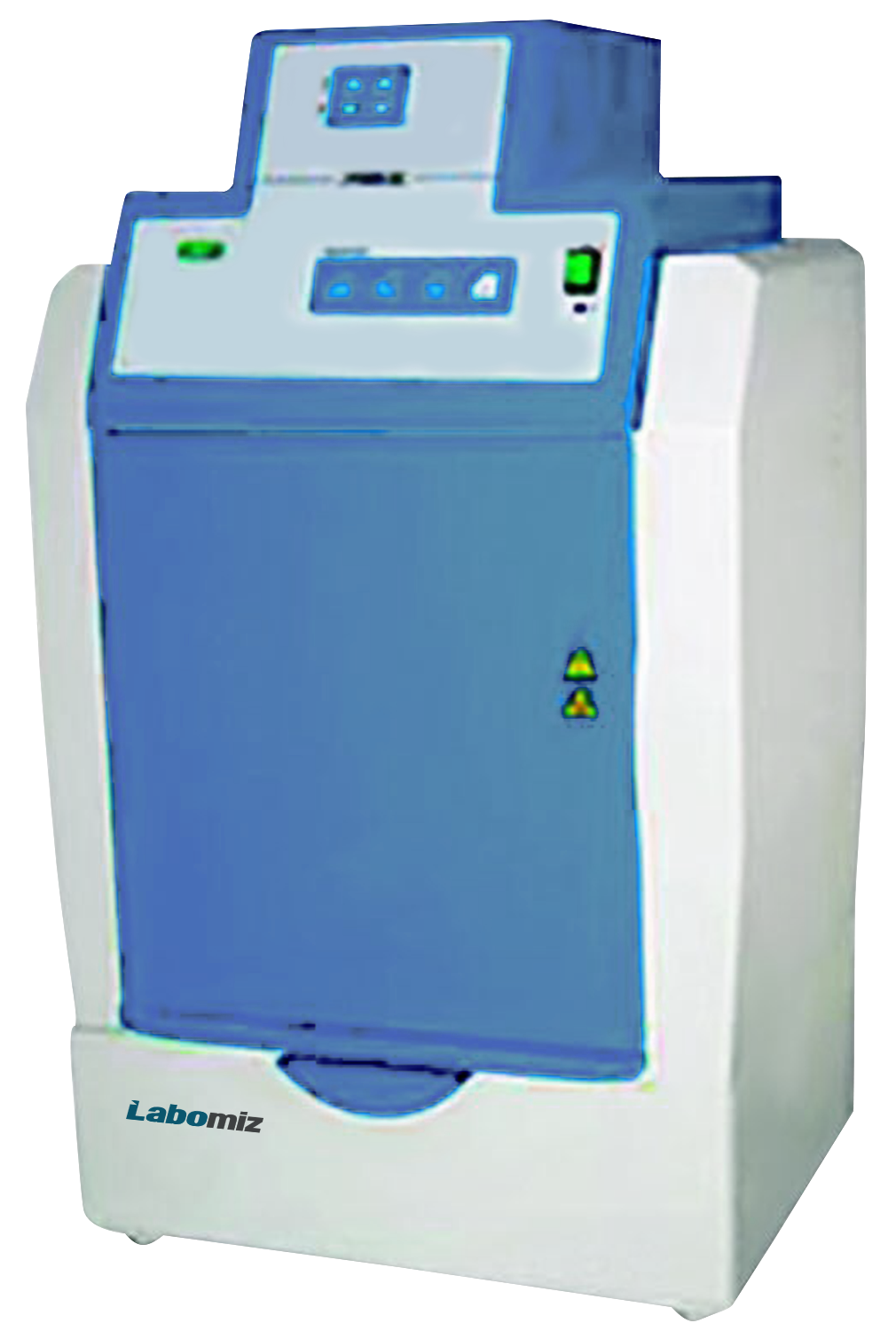

Description : Gel Document Imaging system MGDI-1B is a gel imaging unit with CCD resolution 5.0 megapixels. High quality zoom lens for enlarging and shrinkage of gel photos. Incorporates gel filters for filtering background noise eliminating artifacts. Features control panel for adjusting zoom, focus, aperture, UV light and white light. Light safety switch shut down UV light when door is opened and reactivates when door is closed

Specifications :

Resolution	5.0 megapixels
Effective pixels	2560 x 1920
Pixel Density	10 bit
Pixel size	5.4 x 5.4 µm
Signal to Noise resolution	≥ 56 dB
Sensitivity	Can detect the double chain DNA of EB staining below 20 pg
Camera	Low illumination and high resolution digital CCD
Zoom lens	F= 1:1.2,2/3 inch 6 times zoom lens
Filter	590 nm
UV light Transmission Area (W x L)	250 x 200 mm
Visible Light transmittance Area (W x L)	250 x 210 mm
Transmission UV wavelength	302 nm
Reflectance UV wavelength	254 mm,365 mm
Transmission UV lamp power	8 W
Reflectance UV lamp power	11 W
Internal dimensions (L x W x H)	470 x 405 x 820 mm
External dimensions (L x W x H)	770 x 700 x 1430 mm
Gross weight	71 kg

Features : Effective pixels - 2560 x 1920 CCD with lower lux and high resolution ensures whole screen display Six times zoom lens to enlarge and shrink gel photos Multilayer gel filters for filtering background noise Timer light switch shuts lights within 15 minutes delay Indicator ensures gel to be placed in center position Drawer style gel platform for easy to operate and observe gel

Applications: Used in molecular biology labs, clinical and research labs, for immunoassay, gel and blot imaging, protein detection, 2-D electrophoresis, etc.

UV Transilluminator: UV Transilluminator LB-11UVT is an illumination unit with reflectance UV lamp power 11 W. Features uniform light with high quality filter glass ensures efficiency. It can be used in all weather conditions eliminating the need for dark room. Features : Operating port for gel cutting No requirement of dark room Uniform light, long life service Applications : Used in molecular biology, chemistry, immunology, food industry, pharmaceutical company, biotechnology to observe, cut and photograph electrophoresis gel, protein analysis, etc. Specifications : Model No LB-10UVT Reflectance UV lamp power 254 nm (11 W), 365 nm (11 W) Transmission size (W x L) 200 x 150 mm Transmission UV wavelength 302 nm Reflectance UV wavelength 254 nm , 365 nm Transmission UV lamp power 302 nm (8 W) Power supply AC 110 V ± 10 %, 50 Hz AC 220 V ± 10 %, 60 Hz External size (W x D x H) 435 x 295 x 490 mm Package size (W x D x H) 700 x 640 x 810 mm Net weight 17 kgs Gross weight 45 kgs
