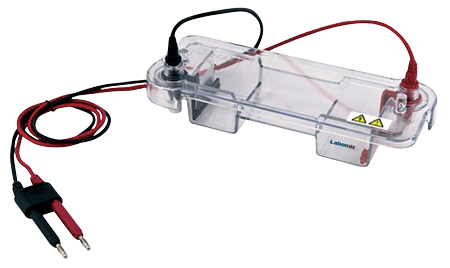

Description : Horizontal Electrophoresis Unit MHEU-1A is a submarine unit with leak-proof buffer chamber assembly. Large volume buffer ensures cooling effects and stable pH value during experimental process. Integrated transparent safety lid prevents liquid volatilization and electricity leakage.

Specifications :

Gel trays (W x L)	48 x 75 mm
Buffer volume	150 ml
Comb thickness	1 mm and 1.5 mm
Comb throughput	3, 5, 9 samples
No of samples	3 to 18
External dimensions(L x W x H )	250 x 95 x 50 mm
Package dimensions (L x W x H )	320 x 160 x 160 mm
Gross weight	1 kg

Features : Dismountable electrodes (easy maintenance) PC (Polycarbonate) transparent top lid for safety Automatic power off if lid is removed Bias power supply (BPS-1/BPS-2/) for controlling circuit

Applications: Used in healthcare, forensic, research and clinical lab, microbiology, biochemistry for DNA fingerprinting, drug testing, protein analysis, genetic testing, etc.

Standard Accessories: 1 Body tank with electrode x 1,Gel Tray 48 x 75 mm x 1, Gel box x 1 2 1 mm thickness 3 wells comb x 2,1.5 mm thickness 3 wells comb x 2 3 1 mm thickness 5 wells comb x 2,1.5 mm thickness 5 wells comb x 2 4 1 mm thickness 9 wells comb x 2,1.5 mm thickness 9 wells comb x 2
