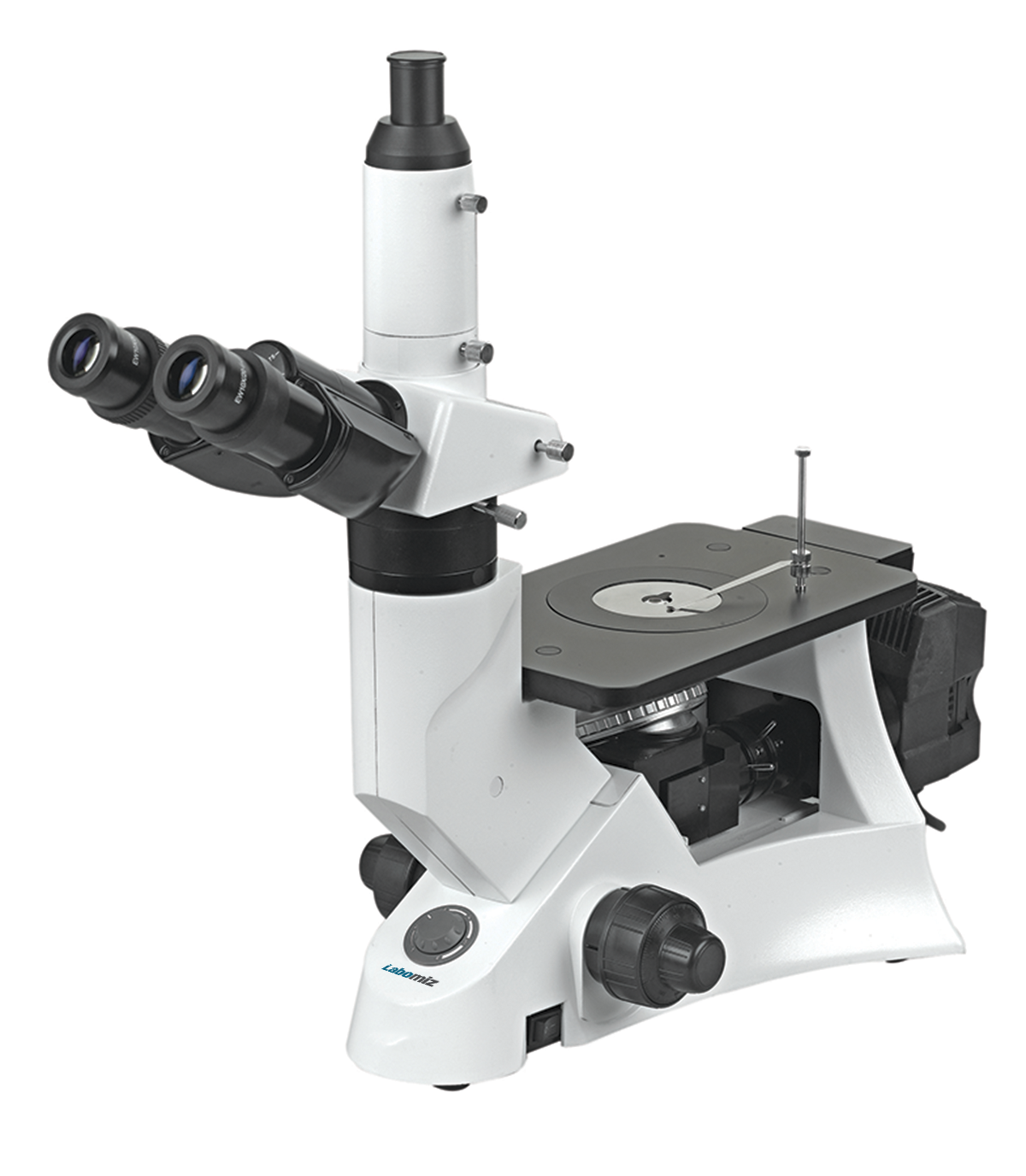

Description : Inverted metallurgical microscope MIUM-1A is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Specifications :

Viewing head	Trinocular head
Viewing head inclination degree	Inclined at 30°
Interpupillary distance	48 mm ~ 75 mm
Eyepiece	High-point, extra wide field eyepiece EW10×/ 20mm
Infinite plan achromatic objective	4X/ 0.1/∞/- WD 17.3 mm 10X/0.25/∞/- WD 10.0 mm 20X/0.40/∞/0 WD 5.8 mm 40X/0.65/∞/0 WD 0.52 mm
Nosepiece	Quintuple nosepiece
Stage	Plain stage with slide clips
Focus	Coarse stroke 37.7 mm per rotation Fine stroke 0.2 mm per rotation Fine Division 0.002 mm Moving range up to 8 mm, down 3 mm
Kohler Illumination	Halogen lamp 6V/ 30W, Kohler illumination
Filter	Blue, Yellow, Green and Frosted filters
Polarization Set	Polarizer and Analyzer

Features : Vertical objective movement for focusing Infinity plan achromatic objectives Infinite optical system provides excellent optical functions Stable stand structure and comfortable operation Blue filters for cooler and more neutral color of image Green filters correct spherical achromatic aberrations Ground glass filters for more even and diffused light

Applications: Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.

Optional Accessories: Accessory No Accessory Specification A10IUM Infinite plan achromatic objective 5X/0.12/?/- WD 15.4 mm A11IUM 40X/0.60/?/0 WD 2.9 mm A12IUM 50X/0.75/?/0 WD 0.32 mm A13IUM 80X/0.90/?/0 WD 0.2 mm A14IUM 100X/0.80/?/0 WD 2 mm A15IUM Stage Attachable mechanical stage, X-Y coaxial control, moving range 120 mm × 78 mm A16IUM Double layer mechanical stage 226 mm × 178 mm, Moving range 50 mm × 50 mm A17IUM Auxiliary stage A18IUM Specimen presser For metallurgical specimen preparation A19IUM Photo adapter Used to connect a DSLR camera to the microscope A20IUM Video adapter 1X, 0.5X C-mount adapter
