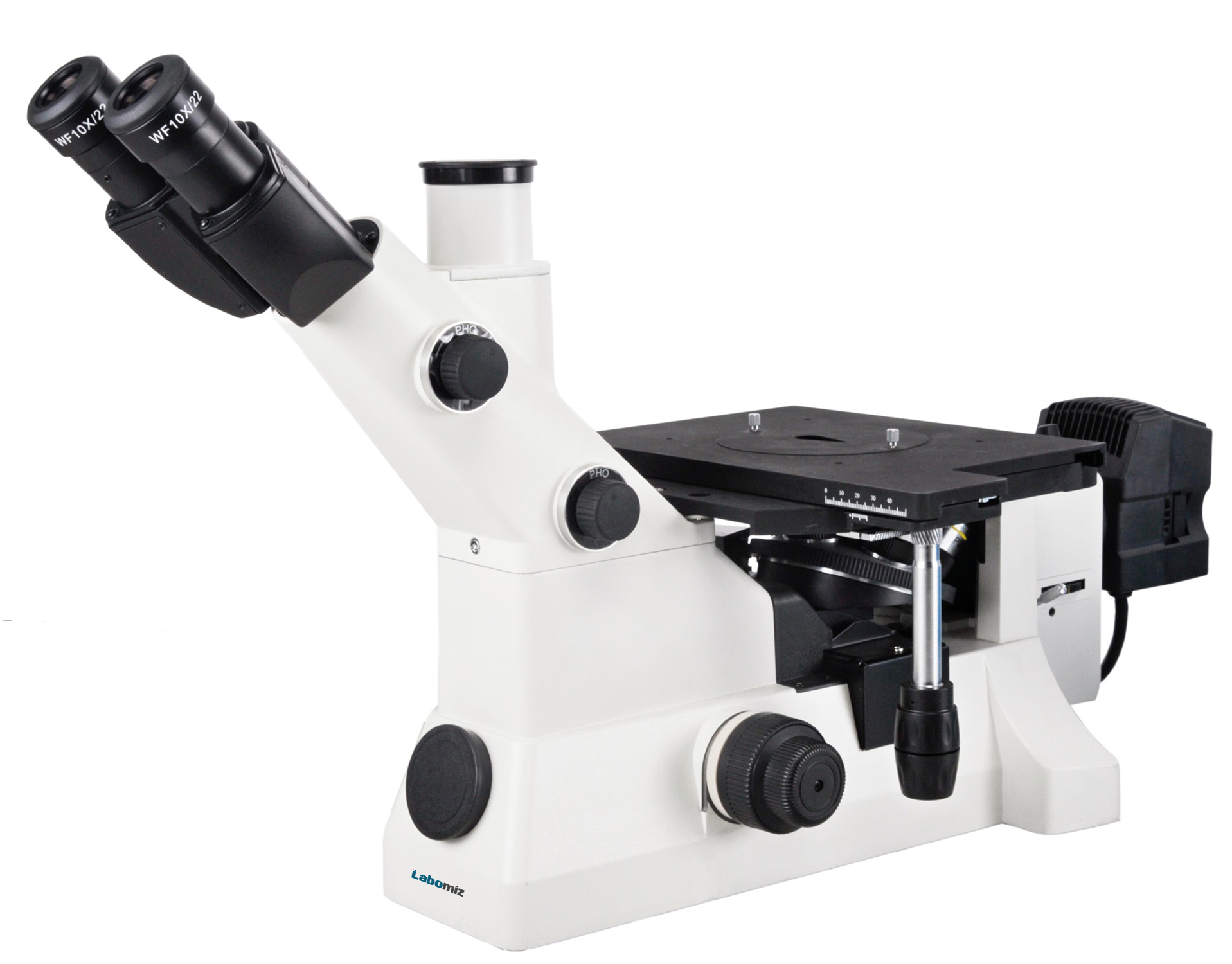

Description :Inverted Metallurgical Microscope MIUM-4A is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis. |
| Viewing head | Siedentopf trinocular head |
| Viewing head inclination degree | Inclined at 30° |
| Interpupillary distance | 48 mm ~ 75 mm |
| Extra wide field eyepiece | WF10X/ 22 mm WF10X/ 20 mm Eyepiece with scale of cross hair |
| Infinite LWD plan achromatic objective | 5X/0.12/∞/0 (BF/DF) LWD 10.0 mm 10X/0.25/∞/0 (BF/DF) LWD 10.0 mm 20X/0.40/∞/0 (BF/DF) LWD 5.0 mm 50X/0.75/∞/0 (BF/DF) LWD 1.3 mm 100X/0.90/∞/0 (BF/DF) LWD 0.7 mm |
| Nosepiece | Backward quintuple nosepiece |
| Stage | Double layer mechanical stage 226 mm × 178 mm Moving range 40 mm × 40 mm Small stage plate, Φ20 mm, Φ30 mm, water drop type |
| Focus | Fine division 2 μm Move up 1 mm Down 7 mm |
| Kohler reflected illumination | 12V/50W Halogen light, center and brightness adjustable Polarizer and analyzer |
| Filters | Built-in Green, Blue, Yellow, Gray and Ground glass filters |
Features :Vertical objective movement for focusing Infinity plan achromatic objectives Infinite optical system provides excellent optical functions Stable stand structure and comfortable operation Blue filters for cooler and more neutral color of image Green filters correct spherical achromatic aberrations Ground glass filters for more even and diffused light |
Applications:Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material. |
Optional Accessories:
|
||||||||||||||||||||
