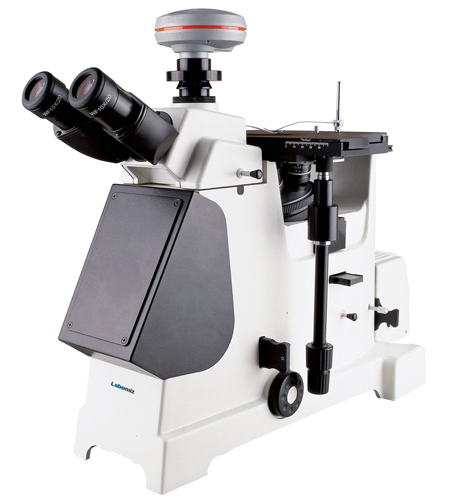

Description : Inverted metallurgical microscope MIUM-5A is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Specifications :

Viewing head	Siedentopf trinocular head
Viewing head inclination degree	Inclined at 30°
Interpupillary distance	48 mm ~ 75mm
Eyepiece	WF10X/ 20 mm
Infinite Plan APO Objective	5X/0.17/∞/0 (BF/DF)LWD 8.6 mm 10X/0.28/∞/0 (BF/DF)LWD 3.4 mm 20X/0.50/∞/0 (BF/DF)LWD 1.1 mm 50X/0.85/∞/0 (BF/DF)LWD 0.5 mm 100X/0.95(Dry)/∞/0 (BF) LWD 0.1mm
Nosepiece	Quintuple nosepiece
Stage	Double layer mechanical stage 200 mm × 190 mm Moving range 40 mm × 40 mm Small stage plate, Φ16 mm, Φ40 mm, water drop type
Focus	Fine division 2 μm Move up 1 mm Down 12 mm
Kohler reflected illumination	12V/100W Halogen light Polarizer and analyzer

Features : Vertical objective movement for focusing Infinity plan achromatic objectives Infinite optical system provides excellent optical functions Stable stand structure and comfortable operation Blue filters for cooler and more neutral color of image Green filters correct spherical achromatic aberrations Ground glass filters for more even and diffused light Infinite optical system and APO objective provide excellent optical functions DIC observation is optional Meet most of your requirements by high performance optical system, technological innovation and high stability

Applications: Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.

Optional Accessories: " Accessory No Accessory Specification A50IUM Extra wide field eyepiece WF15X/ 16 mm A51IUM WF20X/ 12 mm A52IUM Infinite plan APO objective 100X/1.32(Oil)/?/0 (BF) LWD 0.1mm A53IUM Kohler reflected illumination DIC Attachment A54IUM Photo adapter (Used to a DSLR camera to the microscope) A55IUM 0.5X C-mount Video Adapter A56IUM Micrometer scale 0.01 mm "
