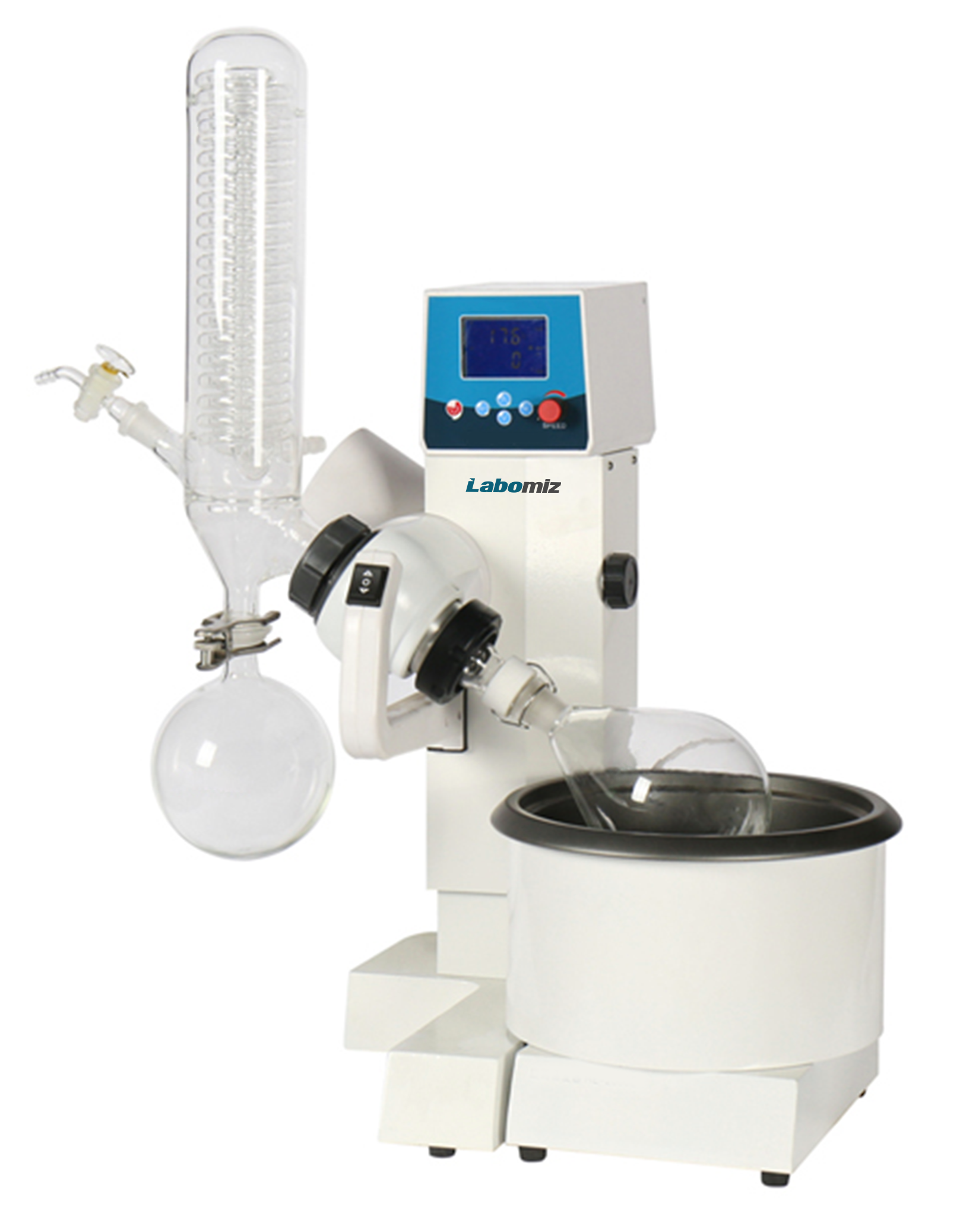

Description : Motor lift rotary evaporator MLRE-1A is equipped with a 0.5 L to 2 L evaporating flask. It consists of a PID temperature controller that assures accurate temperature control. Features a flask rotation speed of 0 rpm to 199 rpm. Vertical with dual-spiral glass tubing condenser. Safety features such as over temperature and fuse protections are available.

Specifications :

Evaporating flask	0.5 L ̴ 2 L
Receiving flask	1 L
Flask rotating speed	0 rpm ̴ 199 rpm
Condensate area	0.09m²
Motor power	40 W
Heating power	2 kW
Vacuum degree	< 399.9 pa
Water bath	RT ̴ 180 °C
Oil bath	RT ̴ 180 °C
Water bath size	Φ240 × 140 mm
Water bath power	2 kW
Voltage	220 V / 110 V

Features : Motor lift is easy to operate, moves up and down slowly and easy to lock LCD display for visual monitoring of speed Vibration - free operation Double seal of PTFE and Viton ensures high vacuum Material is corrosion resistant Large condensing area for high efficiency condensing Condensate liquid is ethanol High quality stainless steel main rack

Applications: Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery.
