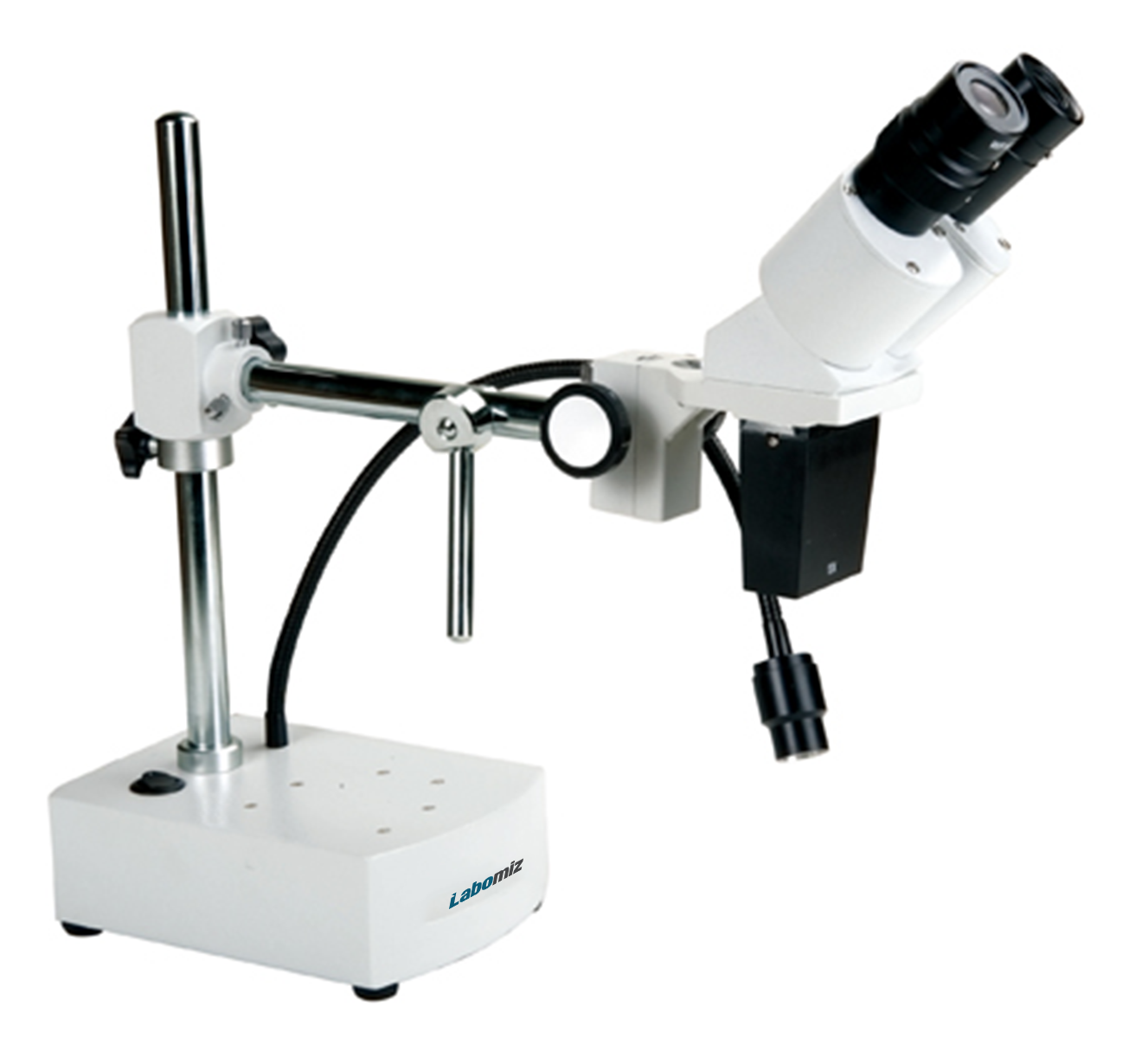

Description : Long working distance stereo microscope LMLWDM-1A is a bench-top unit featuring an inclined binocular head with locked eyepiece. Built-in objectives gives a 230 mm working distance expandable to 250 mm. LED light provides uniform illumination with long life span. Diopter adjustment by left eyepiece.

Specifications :

Viewing head	Binocular
Eyepiece	WF 10X / 20 mm
Inclination	45°
Diopter adjustment	± 5 dp
Tube diameter	23.2 mm
Inter-pupillary distance	55 mm ⁓ 75 mm
Objective	1X W.D : 230 mm
Illumination ( Incident )	3 W
Power supply	110 V / 60 Hz 220 V / 50 Hz
Dimensions	410 × 200 × 430 mm
Weight	6 kg

Features : Adjustable inter-pupillary distance ( Maximum comfort ) Sharp stereo erect image LED lamp ( high brightness ) Easy replaceable V-shaped inserted objective

Applications: Used widely for school education. Used in circuit board inspection and repair, SMT work, electronics inspection, coin collecting, gemstone setting, engraving, inspection and repair of small parts.

Optional Accessories: Accessory No. Accessory Accessory specification LWDMA1 Eyepiece WF5X / 20 mm LWDMA2 Eyepiece WF15X / 15 mm LWDMA3 Eyepiece WF20X / 10 mm LWDMA4 Objective 0.5X, W.D : 250 mm LWDMA5 Objective 2X, WD : 80 mm
