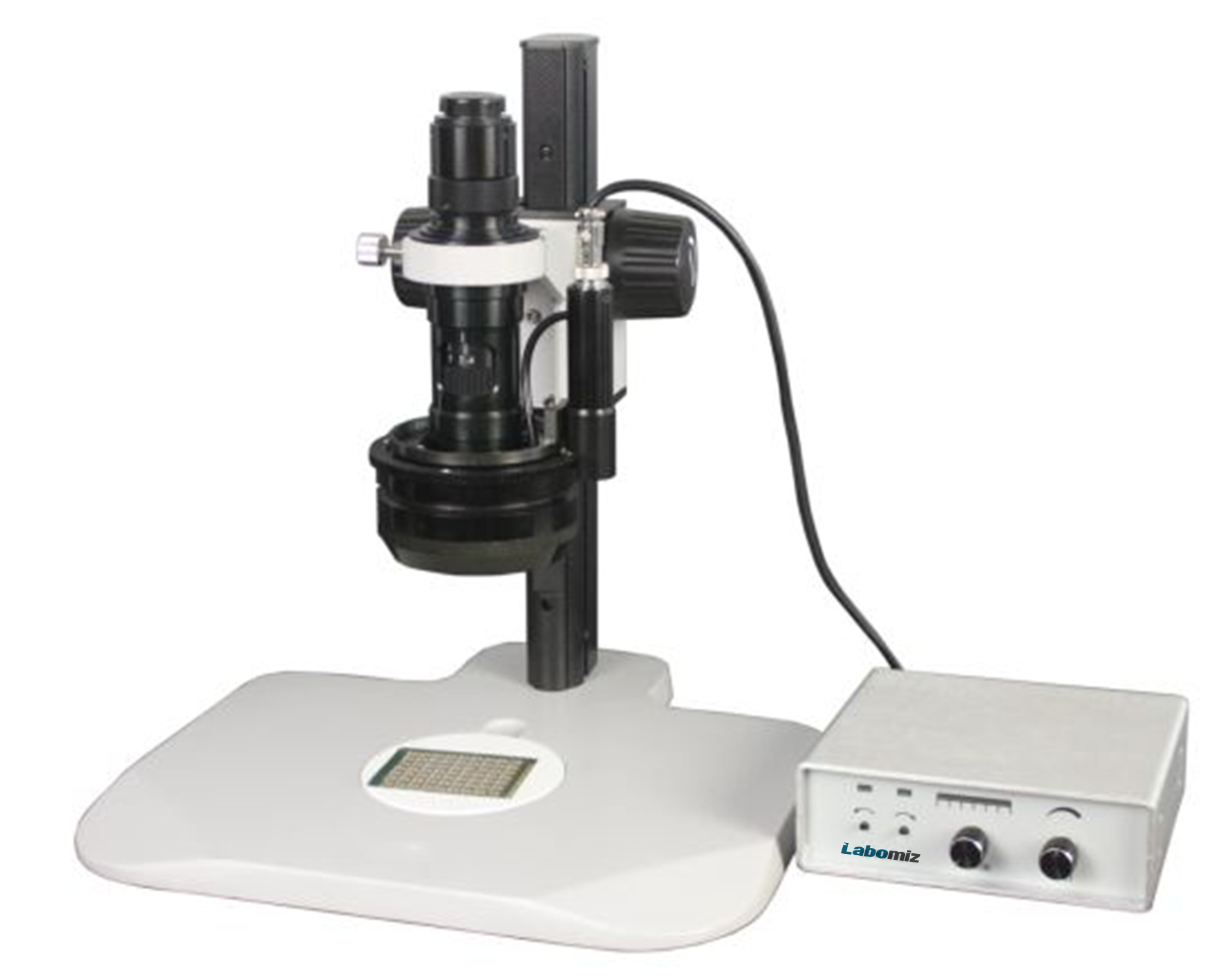

Description : Motorized monocular microscope MMMZ-1A is a unit with excellent zoom magnification optical system and precision electromechanical system. The motorized 3D attachment can observe the specimen from 360° with high-resolution, high contrast, large depth of field, long working distance and high zoom ratio.

Specifications :

Video Eyepiece	0.75X
Objective	1X
Working Distance	117mm (from the specimen to illumination part, the distance is 66mm)
Zoom Magnification	0.3X ~ 2.4X
Zoom Ratio	1:8
Max. Adaptive Sensor size	2 / 3 ″
Mounting Diameter	45 mm
Camera Connector	Standard C-mount
Stand	Coarse focus, Column height: 326 mm Focusing Range: 160 mm Base dimension: 318 × 308 × 16 mm
Controlling Motors	High quality stepping motors
Controlling Box	Speed adjusting range: 6 ~ 15 rotation/min
Illumination	12 V / 10 W LED illumination

Features : High resolution and high zoom ratio(1:8) 360° observation Alternative eyepiece available to obtain a multiple magnification

Applications: Used in semiconductor and electronics industry for small parts inspection, assembly and repair, biological anatomy, jewelry inspection, school’s education and research areas.

Optional Accessories: Accessory No Accessory Video Eyepiece 0.5X 1X 1.5X 2X
