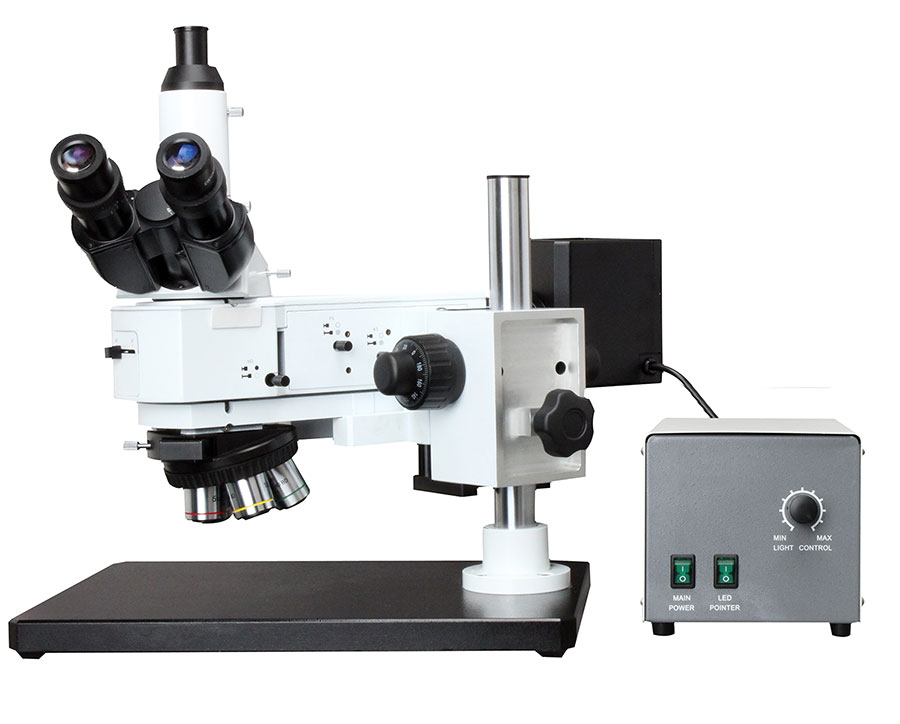

Description : Metallurgical microscope MMUM-6B is an infinite optical system with high magnification objective and long working distance. Ingenious stand and convenient operation takes place. Powerful transmitted and reflected systems with Kohler illumination.

Specifications :

Viewing head	Siedentopf trinocular viewing head Inclined at 30°, Rotate360° Interpupillarly distance 48 mm ~ 75 mm Light distribution: 80:20
Infinite plan achromatic objective	5X/ 0.12/∞/ - (BF&DF)WD 12.0 mm 1X/ 0.25/∞/ - (BF&DF)WD 10.0 mm 20X/ 0.4/∞/ 0 (BF&DF)WD 4.3 mm 50X/ 0.75/∞/ 0 (BF&DF)WD 0.32 mm 100X/ 0.8/∞/ 0 (BF&DF)WD 2.0 mm
Reflected light	24V/100W Halogen light, Brightness adjustable Blue, Green, Yellow and Frosted filter
Focus	Fine Division 0.001 mm Moving Range 32 mm
Nosepiece	Backward quintuple nosepiece
Stand	Size of the base: 396 × 276 × 22 mm The height of the column 300 mm Diameter 30 mm

Features : High magnification objective with long working distance Comfortable operation with low position focus knob Easy, safe and reliable lamp replacement device Halogen lamp and adjustable brightness Coaxial coarse and fine adjustment Field diaphragm and adjustable center Epi-illuminator with iris aperture diaphragm and iris field

Applications: Used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It also can be used for metallography education and research.

Optional Accessories: Accessory No Accessory Specification A60MUM DIC attachment 20X, 100X A61MUM Reflected light 150W Cold Light, Brightness adjustable A62MUM 40W LED illumination, Brightness adjustable A63MUM Polarizer and analyzer A64MUM Specimen presser A65MUM Photo attachment For Nikon or Canon DSLR camera A66MUM Video attachment C-Mount 1X, 0.5X
