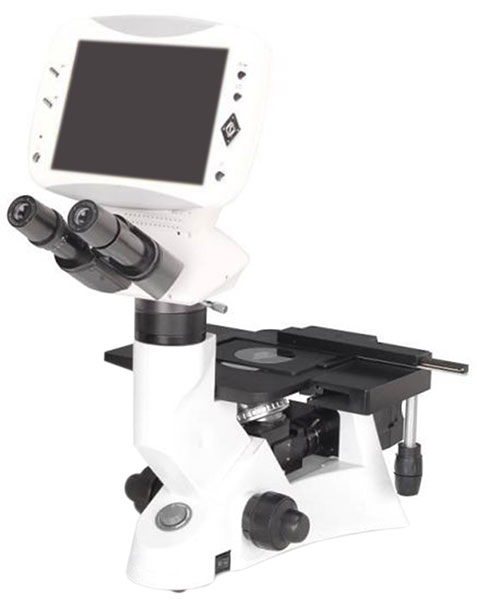

Description : Metallurgical Microscope MMUM-8A combines a 9 inches HD LCD screen and a metallurgical microscope to generate genuine photos and videos. Powerful transmitted and reflected systems with Kohler illumination. . It is also features the latest 12.0 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.

Specifications :

Resolution	12.0 Mega Pixel
Video Resolution	1920 × 1080 / 30 fps
Sensor Size	1/2.5 Inches
LCD Screen	9 Inches HD LCD Screen, Resolution is 1280 × 800
Data Output	USB2.0, HDMI
Storage	SD Card (4G)
Exposure Mode	Auto Exposure
Date Mode	Year, Month, Day, Hour, Minute
Viewing Head	Seidentopf Binocular Head
Viewing head inclination angle	30° Inclined
Interpupillary Distance	55 mm ~ 75 mm
Eyepiece	Wide Field Eyepiece WF10×/18
Objective	4×/0.1/∞/- WD17.3mm 10×/0.25/∞/- WD10.0mm 20×/0.40/∞/- WD5.8mm 40×/0.60/∞/0 WD2.9mm
Nosepiece	Quadruple Nosepiece
Stage	Double Layers Mechanical Stage 150 mm × 140 mm / 75 mm × 50 mm
Focusing System	Coaxial Coarse/Fine Focus System
Illumination	6 V / 20 W Halogen Lamp, Brightness Adjustable
Filters	Blue, Green, Yellow & Ground Glass

Features : Comfortable operation with low position focus knob Easy, safe and reliable lamp replacement device Halogen lamp and adjustable brightness Coaxial coarse and fine adjustment 9” LCD screen, images and videos can be shared 12.0 Megapixels camera with real time imaging display, images and video recording and re-playing function 12VDC power supply, safety and reliability of low voltage 4G SD Card storage and printing

Applications: Used in industrial areas for PCB board, LCD display, metal structure observation and inspection. It can also be used for metallography education and research.

Optional Accessories: Accessory No Accessory Specification A81DLM Eyepiece WF8×/18mm A82DLM WF10×/18mm with 0.1mm Micrometer & Cross Hair A83DLM WF12.5×/15mm A84DLM Infinity Plan Achromatic 40×/0.65/?/- WD0.52mm A85DLM 50×/0.75/?/- WD0.32mm A86DLM 80×/0.90/?/- WD0.2mm A87DLM 100×/0.80/?/0 WD2.0mm
