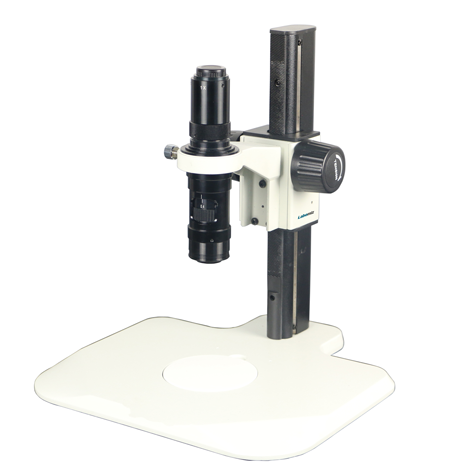

Description : Monocular Zoom Microscope MMZM-2A is a precise optical system providing high resolution and sharp stereoscopic images. It is flexibly equipped with a microscopic stand. It ca be integrated in a semi-conductor and integrate circuit board production line. Adapts to C-mount, and works with various digital cameras.

Specifications :

Video eyepiece	1X
Objective	1X, WD: 88 mm
Zoom magnification	0.6X ~ 5.0X
Zoom ratio	1:8.3
Optical magnification	0.05x-30x,when add 0.3x auxiliary objective + 0.3X C-mount +2x auxiliary objective +3X C-mount
Maximum adaptive sensor size	1 ″
Mounting diameter	45 mm
Camera connector	Standard C - mount
Stand	Coarse focus, Column height: 328 mm Focusing Range: 160 mm Base Dimension: 318 x 330 x 20 mm

Features : High quality zoom optical system Compact structure makes it occupy less working space Various digital cameras can be used with the microscope for image capture and analysis

Applications: Used in educational demonstration, agriculture research, industrial material, semi-conductor and integrated circuit inspection areas.

Optional Accessories: Accessory No Accessory B1MZ Video Eyepiece 0.5X B2MZ Video Eyepiece 0.75X B3MZ Video Eyepiece 1.5X B4MZ Video Eyepiece 2X B5MZ Objective 0.5X, WD: 235mm B6MZ Objective 0.75X, WD: 156mm B7MZ Objective 1.5X, WD: 76mm B8MZ Objective 2X, WD: 57mm B9MZ Digital camera B10MZ Ring LED light

Optical Magnification: Objective Video Eyepiece Working Distance 0.5X 0.75X 1X 1.5X 2X (mm) 0.5X 0.1X?0.8X 0.15X?1.2X 0.2X?1.6X 0.3X?2.4X 0.4X?3.2X 235 0.75X 0.15X?1.2X 0.225X?1.8X 0.3X?2.4X 0.45X?3.6X 0.6X?4.8X 156 1X 0.2X?1.6X 0.3X?2.4X 0.4X?3.2X 0.6X?4.8X 0.8X?6.4X 117 1.5X 0.3X?2.4X 0.45X?3.6X 0.6X?4.8X 0.9X?7.2X 1.2X?9.6X 76 2X 0.4X?3.2X 0.6X?4.8X 0.8X?6.4X 1.2X?9.6X 1.6X?12.8X 57

Option Ring LED Light Specifications: Model No B10MZ LED quantity 72 LEDs Mounting diameter 62 mm Outer diameter: 98 mm Input power DC12V 600 mA Input voltage Universal 100 V ~ 240 V AC Output power 7.2 W LED color temperature 6500 K LED luminance 15000 mcd LED angle 18 ° (Consistent) LED lifetime 100,000 hrs Working distance 95 mm ~ 115 mm LED color White Light control box 4 zones separately controlling
