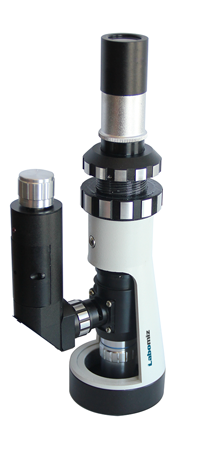

Description : Portable Metallurgical Microscope MPTL-1A adopts a rechargeable vertical LED illuminator, which provides even and adequate illumination. It can work more than 40 hours after one charge. It has an optional magnetic base that can be adsorbed solidly on the work piece.

Specifications :

Eyepiece	Plan eyepiece 10X / 18 mm
Objective	Long work distance plan objective: 10X/0.25, WD7.3 mm 500X/0.70, WD 0.5 mm
Total Magnification	100X, 500X
Mechanical tube length	160 mm
Focusing range	20 mm
Dimension	230 x 110 x 70 mm
Weight	0.75 kg

Features : Adapted to various diameter pipes and flat Magnetic base can be adjusted from X, Y directions Adjustable LED light illumination(chargeable)

Applications: Used for identification of casting quality, inspection of raw material or metallurgical structures, research and analysis of processed material in factory and laboratory, also can be used in antique gem and surface observation.

Optional Accessories: " Accessories No Accessories Name MOP1 WF16X, WF20X, WF10X/18 eyepiece with crossing line MOP2 Long work distance plan 5X, 20X and 40X objectives MOP3 Digital Cameras MOP4 Magnetic base "

Standard Accessories: Accessories No Accessories Name A1 Plan eyepiece 10X/18mm A2 LWD Plan Metallurgical Objective 10X A3 LWD Plan Metallurgical Objective 50X A4 LED Illumination A5 Power source battery charger
