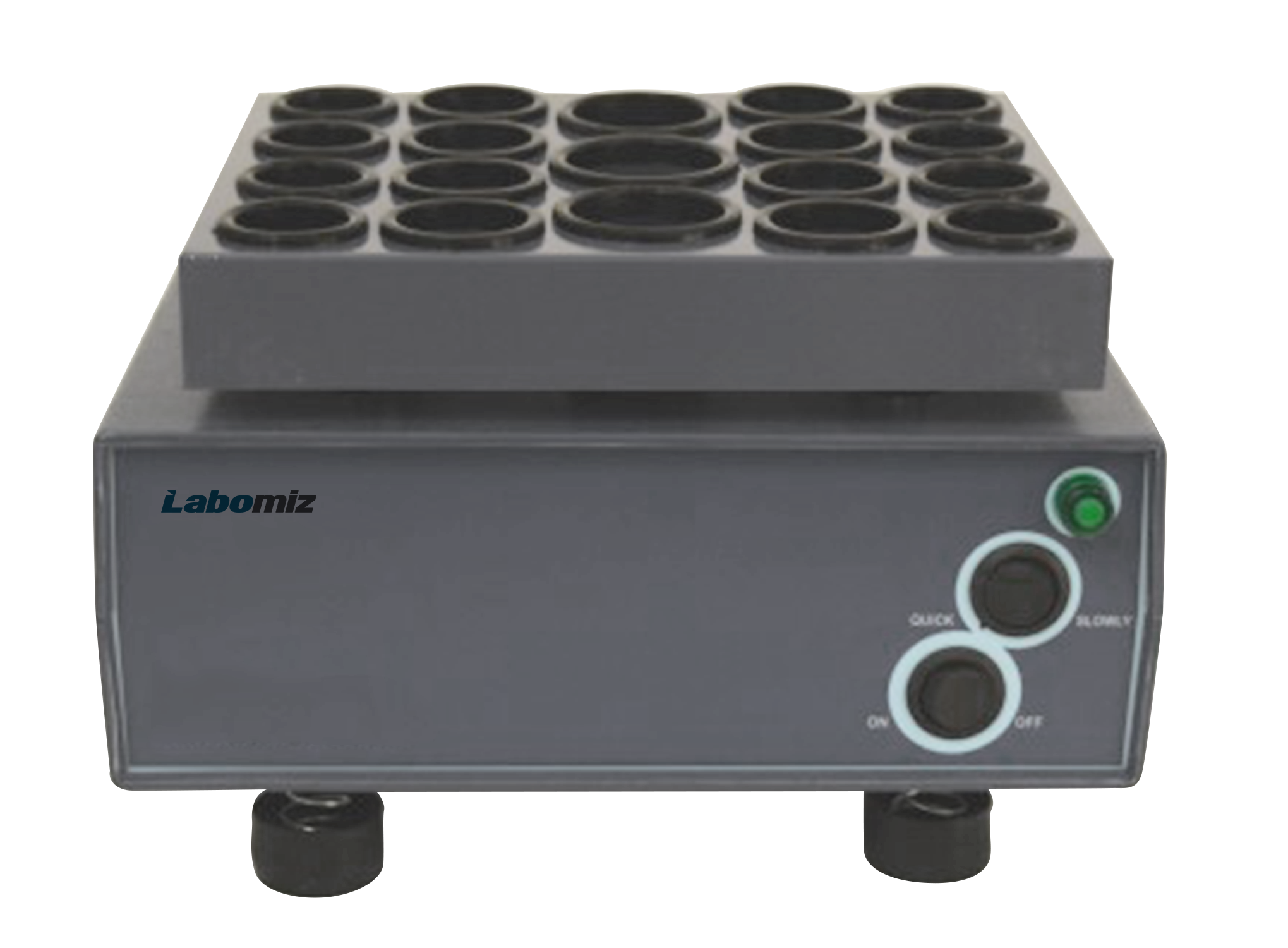

Description : Powder shaker MPWD-1A is a tabletop microprocessor controlled unit. It features high performance and low noise AC motor, optimized for rapid and thorough mixing. Different types of well plates makes it suitable for various applications.

Specifications :

Motion	Circular
Orbit diameter	3.4 mm/4 mm
Speed range	1000 rpm/1200 rpm
Operation mode	Continuous
Standard plate	Height 30 mm Φ 37 O-ring : 1 well Φ 35 O-ring : 2 wells Φ 28 O-ring : 8 wells Φ 25 O-ring : 8 wells
Protective class	IP21
Relative humidity	0.8
Voltage	AC 220 V ± 10 % (50 Hz/60 Hz)
Dimensions	235 x 160 x 160 mm
Weight	2.3 kg

Features : Noiseless operation Continuous running mode Compatible for different types of plates Recommended bottles diameter: 1 mm ~ 3 mm less than the O-ring Recommend bottles height: double of the working plate

Applications: Used in food, medicine, metallurgy, chemical industry, cement, glass, grain, ceramics, paper industry, research and development and quality control, etc. for shaking powder particle size and granules.
