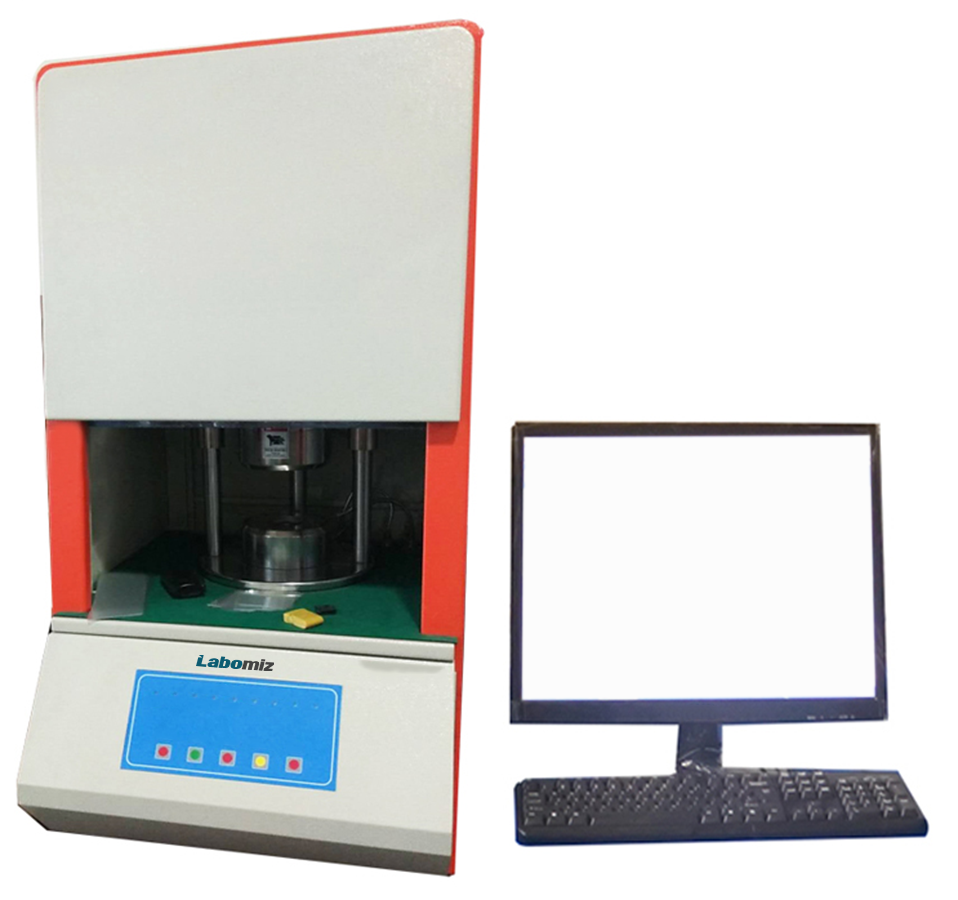

Description : Mooney viscometer MRMV-1A is a microprocessor based PID controlled viscometer for measuring changes in rubber and plastic elastomers. The rotating spindle and heated dies fundamentally produces a controlled test environment with temperature maintenance.

Specifications :

Temperature range	RT ~ 200 °C
Measurement range of torque	0 mV ~ 200 mV
Temperature fluctuation in die	≤ ± 0.1 °C
Temperature resolution	0.1 °C
Temperature increase rate	25 °C / min
Torque resolution	0.01 mV
Rotor frequency	2 rpm ± 0.02 rpm
PID control temperature	± 0.1 °C
Power supply	220 V; 50 Hz
Dimensions	650 × 650 × 1100 mm
Weight	93 kg

Features : Operational keys on front panel for process accessibility Separate plate temperature control between the spindle and the dies Adjustable temperature range Transparent front window for visual process monitoring

Applications: Used in the complete production process of rubber and plastic elastomers in various industries.
