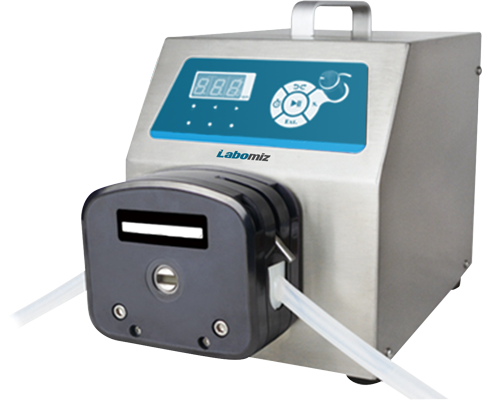

Description : Standard Peristaltic Pump MSPP-1H is a positive displacement pump with mechanical keypad for controlling direction and speed. It pumps out fluids with flow rates based on model type and tubing sizes. The number of channels and rollers ensures durability and performance. It is ideal for dispensing, metering and general transfer of fluids.

Specifications :

Flow rate range	0.3 ml / min ~ 6000 ml / min
Number of channels	1 ~ 2
Speed range	0.1 rpm ~ 600 rpm
Number of rollers	3
Speed resolution	0.1 rpm
Outlet pressure	0.3 MPa
Flow rate accuracy	< ± 0.5 %
IP grade	IP31
Standard Power supply	220 V ± 10 % 50 Hz 220 V ± 10 % 60 Hz
Optional Power supply	110 V ± 10 % 50 Hz 110 V ± 10 % 60 Hz
Power consumption	< 80 W
Temperature	0 °C ~ 40 °C
Relative humidity	< 80 %
Dimension ( L × W × H )	292 mm × 192 mm × 274 mm
Weight	5.02 kg

Features : Stainless steel construction for rigidity, accuracy and reliability Streamlined body design ABS plastic shell and UV coated structure for anti-corrosive and anti-static properties Mechanical keypad for controlling direction and speed LED screen displays current motor speed, direction and working state Embedded metal handle for comfortable grip and convenience Equipped with Pump head, internal wrench, external control protection cover Noiseless drive Equipped with Ultra filter Equipped with Servo motor drive Dust and moisture proof, anti-static and anti-corrosive circuit board

Applications: Used in waste water treatments, mining industry, chemical industry, laboratories, research institutes, food and beverage industry, etc.

Optional Accessories: Accessory No Accessory 1. Foot pedal switch 2. Filling nozzle 3. Support stand 4. One way valve

Standard Accessories: Accessory No Accessory 1 Power line 2 Silicone tubing 3 Manual
