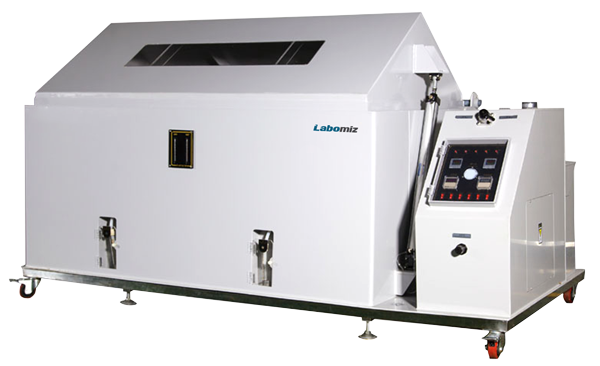

Description : Salt spray chamber MSSC-1A is a 60 L chamber designed for corrosion testing. It comprises of a saline fog environment with a temperature range from (35 °C to 50 °C) and transparent angled (110º to 120º) chamber which allows easy observation of sample spraying condition and prevents contact of condensate with sample.

Specifications :

Chamber capacity	60 L
Interior dimensions (W x H x D)	600 x 400 x 450 mm
Exterior dimensions (W x H x D)	1130 x 1070 x 630 mm
Temperature range	35 °C ± 1°C to 50 °C ± 1°C
Heater power	3 kW + 0.75 kW
Air compressor	1/ 2 HP
Power supply	AC 220 V 50 Hz
Weight	50 kg

Features : Acrylic glass spray nozzle ( optimum spray distribution ) Quartz glass fired nozzle ( miniscule spray mist ) Glass fiber protected interior and exterior chamber with epoxy integral molding ( corrosion and leakage resistant ) Tower spraying system charged with salt solution filtration system 110 ° to 120 ° angled transparent chamber top Water sealing between chamber top and cabinet ( no salt spray overflow ) Water level and temperature protection system Economic arrangement of control panel and display instruments Corrosion and temperature resistant material Recyclable PVC assembly

Applications: Used to assess corrosion resistance of metal fittings, protective coatings, in tests like NSS, ACSS, CASS, CORK, in automotive, military, medical and maritime sectors
