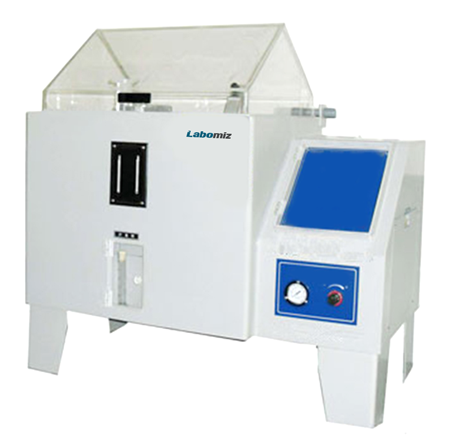

Description : Salt spray chamber MSSC-1D is a PID temperature controlled titanium tube heating system with corrosion resistant temperature probe for anti-corrosive oil resistance assessment. The characteristic quartz glass nozzle inhibits crystallization for a long period of time.

Specifications :

Chamber capacity	108 L
Interior dimensions (W x H x D)	600 × 450 × 400 mm
Exterior dimensions (W x H x D)	1340 × 2880 × 1520 mm
Temperature range	35 °C ~ 50 °C
Saltwater tank capacity	15 L
Saturation temperature	47 °C ~ 63 °C
Spray settlement	1.0 ml/h.80 cm2 ~ 2.0 ml/h.80 cm2
Power supply	AC 220 V ± 10 %; 50 Hz ± 10 %
Weight	510 kg

Features : Digital LCD screen for visual monitoring Multi-function timer accessible with power failure memory function Conical diffuser in spray tower to maintain uniform fog volume Automatic and manual water addition function for uninterrupted operation Automatic power cut-off in case of over temperature or heating failure Low water indication to prevent excess pressure or burning of the water tank Seamlessly welded stainless steel pressure tank Transparent acrylic sheet cover for better visualization

Applications: Used in experimental labs, oil refineries, petrochemical industries, chemical industries, paint and lubricants industries, etc.

Standard Accessories: Sr. No. Name of the accessory Quantity 1 Spray 1 2 Shelves 4 3 Glove stick 6 4 Standard cylinder 1 5 Temperature indicator 2 6 Collector 1 7 Glass nozzle 1 8 Defogging group 1 9 Cup 1
