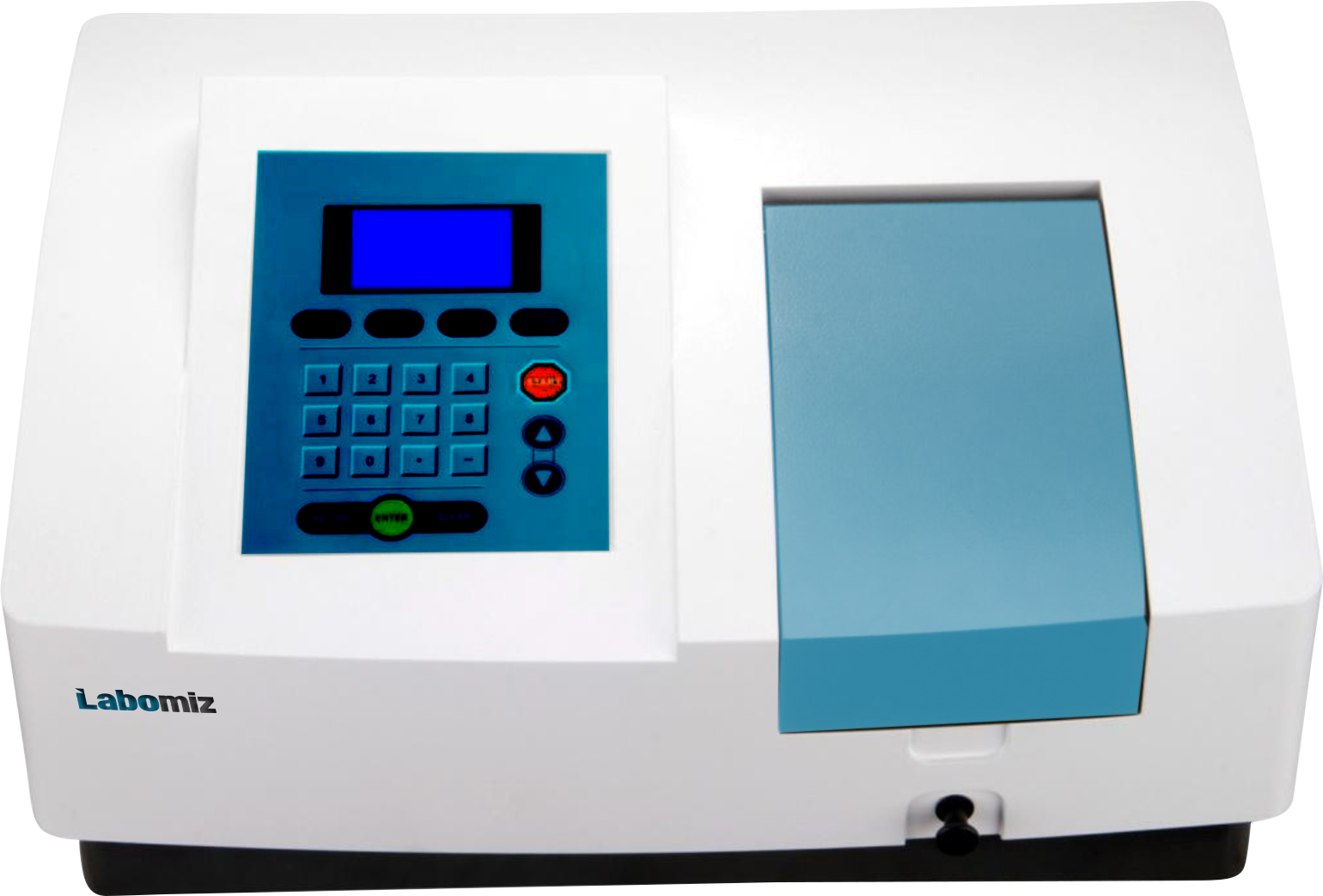

Description : Scanning Visible Spectrophotometer MSVS-1B is a light intensity measuring unit with wavelength range 320 nm ~ 1100 nm ensuring precise and stable output. It is equipped with 24-bit high precision A/D converter with ARM system for high sample processing speed. High performance diffraction grating (1200 L/mm) for precise spectral results. Integrated with USB interface enables transfer and storage of output data.

Specifications :

Optical system	Achromatic Czerny-Turner (1200 L/mm grating)
Wavelength range	320 nm ~ 1100 nm
Spectral bandwidth	2 nm
Wavelength accuracy	± 0.5 nm
Wavelength repeatability	0.2 nm
Wavelength setting	Auto
Display	4-bit 320 x 240 large screen LCD
Detector	Silicon photodiode
Stray light	0.2 % T at 360 nm
Stability	± 0.002 A/h at 500 nm
Light source	Tungsten and Deuterium
Measurement modes	T,A,C
Power	AC 110 V,50 Hz AC 220 V,60 Hz
Weight	8 kg

Features : LCD digital displays curve and data Large sample chamber - upto 100 mm cuvette Light source-Tungsten and Deuterium lamp Center light spot for higher metering precision Function-photometric and quantitative measurement, spectral scanning, dynamic and DNA/protein testing, multi-wavelength testing, data printing, etc. Output - USB interface

Applications: Used in biochemistry, clinical and research labs, petrochemical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
