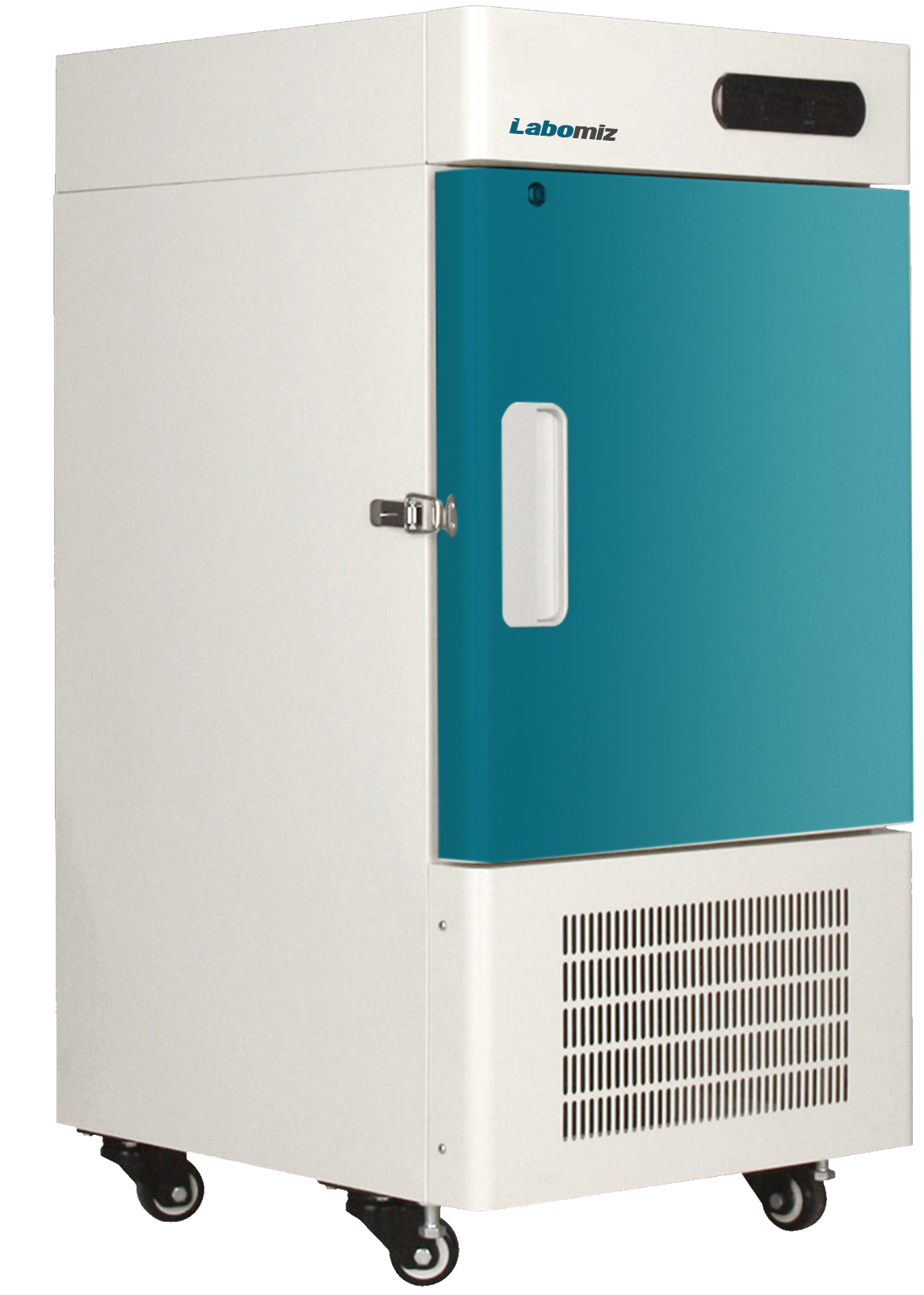

Description : -86°C Upright ULT freezer MUUF-2A is a standard under counter solid door freezer equipped with electronic temperature control. Direct-cooling ensures consistent performance at utmost efficiency for prolonged refrigeration. Shelved platform with partition facilitates organized storage compatible with sample standards. System alarms include high or low set temperature limits, sensor fail or temperature controller and open ajar conditions.

Specifications :

Storage capacity	50 L
Shelves	1
External size	540 × 620 × 1145 mm
Internal size	361 × 429 × 406 mm
Temperature range	-40 °C to -86°C
Temperature sensor	PTC
Evaporator	Copper coiled tube
Condenser	Copper type Brass aluminum fin
Compressor	1
Refrigerant	Mixed
No. of test hole	1
Diameter of test hole	18 mm
Noise	49.5 dB
Power consumption	6.5 kW/h
Power supply	220 V / 50 Hz ; 3.1 A
Power	450 W
Weight	75 kg

Features : Capacity : 50 L Direct cooling technology with manual defrost Consistent performance during long-term refrigeration Digital control panel for temperature monitoring and alarms Latched door-lock for dependable sample protection

Applications: Used in diagnostic laboratories, clinical pathology laboratories for standardized storage for temperature sensitive specimen, enzyme, reagents, and other bio-chemical products used for research applications.

Optional Accessories: Module No. Module Name ATR-2A Thermal Recorder COB-2A CO2 Backup system LNB-2A LN2 Backup system
