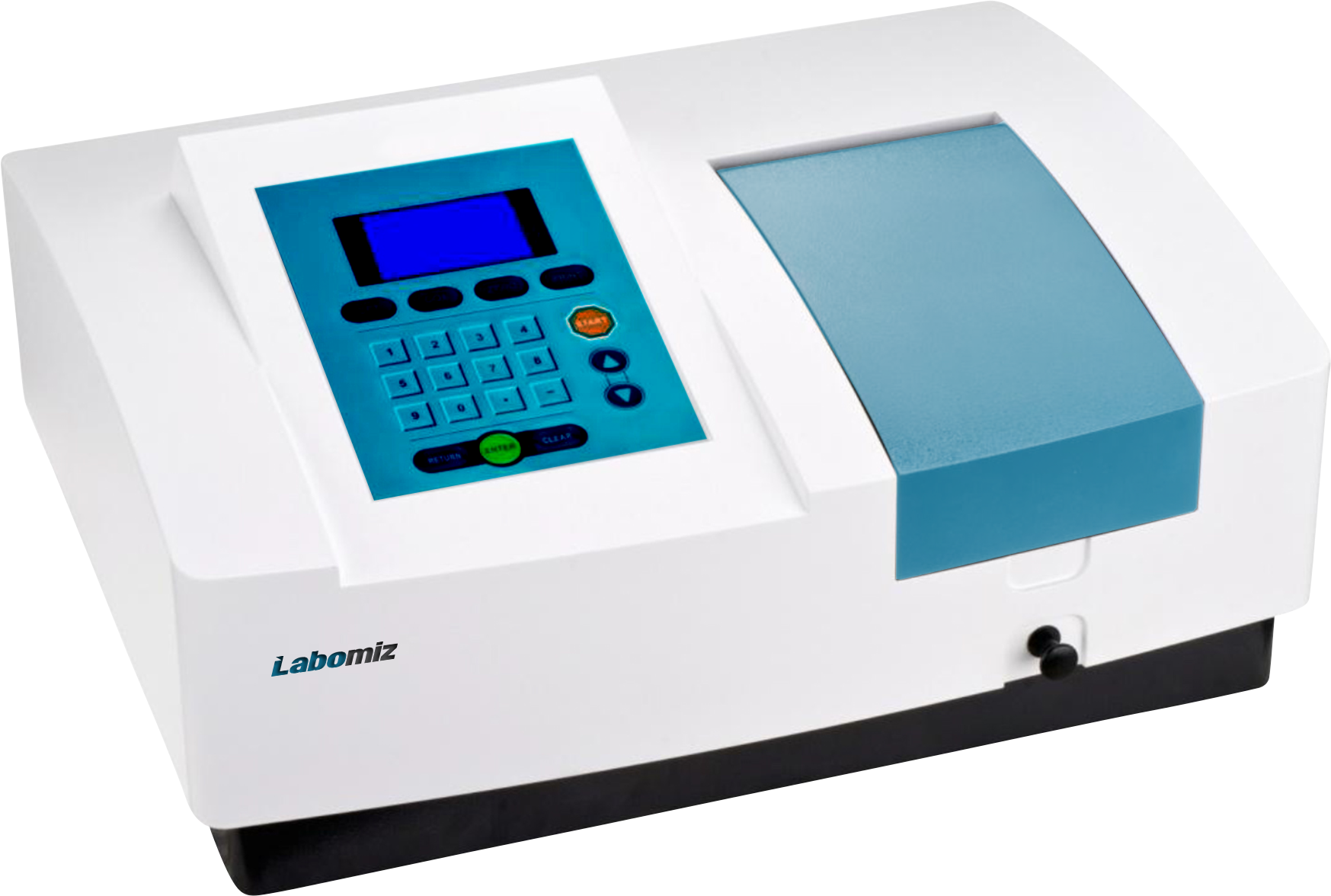

Description : UV-Visible Spectrophotometer MUVS-2A is a microprocessor based light intensity measuring unit with wavelength range 190 nm ~ 1100 nm. It is equipped with fault diagnosis function with automatic wavelength setting ensures high precision and stability. Integrated with RS-232 serial port enables output to be connected to printer or computer.

Specifications :

Optical system	Achromatic Czerny-Turner (1200 L/mm grating)
Wavelength range	190 nm ~ 1100 nm
Spectral bandwidth	4 nm
Wavelength accuracy	± 2 nm
Wavelength repeatability	0.5 nm
Wavelength setting	Auto
Stray light	0.3 % T at (220 nm , 360 nm)
Display	128 x 64 LCD
Detector	Silicon photodiode
Light source	Deuterium lamp; Tungsten lamp
Power	AC 110 V,50 Hz AC 220 V,60 Hz
Dimensions	520 x 450 x 300 mm
Gross weight	11 kg

Features : Microcomputer system for storage of standard data and curve Diffraction grating 1200 L/mm ensures precise spectral results USB,RS-232 serial port for output connection LCD display measuring value and curve Automatic wavelength calibration Quantitative measurement: photometric analysis, quantitative analysis, kinetic testing, multi wavelength test, DNA/protein testing, spectral scanning.

Applications: Used in biochemistry, biochemical, pharmaceutical, environmental protections, food, chemical, universities and quality control for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
