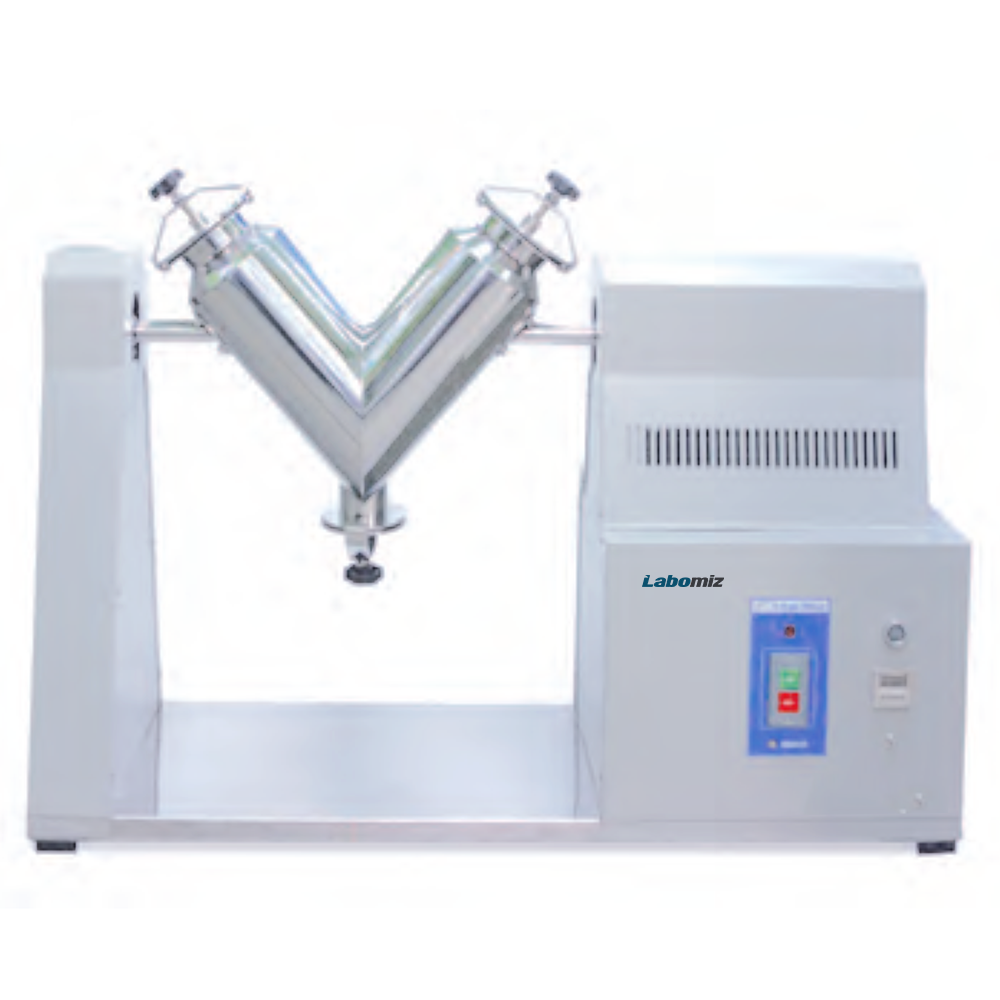

Description : V-type mixer MVTM-1D is equipped with gyration system for quick diffusion. A horizontal shaft ensures a perfect and quick homogenization of mixing components. Double swing axis rotation improves mixing efficiency with no dead angle. Blending time depends on the properties of material to be blended.

Specifications :

Vessel capacity	70 L
Mixable capacity	30 L
Vessel rotating speed	36 rpm
Impeller rotor power	1hp
Vessel height ( from bottom )	600 mm
Drum motor power	2 hp
Impeller rotor speed	600 rpm
Power ( 1 phase )	AC 230 V 50 Hz / 60 Hz
Overall dimensions ( W × D × H )	1660 × 650 × 1300 mm
Net weight	280 kg

Features : V shaped drum and impeller rotators Homogeneous mixing on 360° rotation Unit power on-off buttons Corrosion resistant stainless steel plate (vessel material) Steel plate with powder coated finish (body material)

Applications: Used for dry blending, pharmaceuticals, food products, metals, ceramic powders, fertilizers, cosmetics, polyethylene, pesticides, etc.
