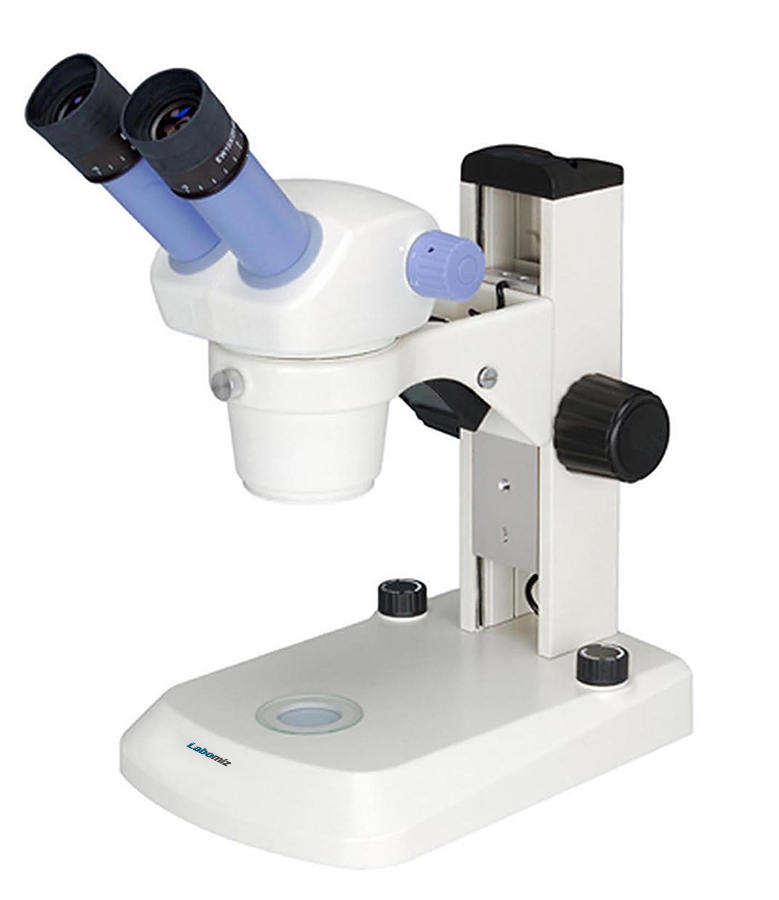

Description : Zoom stereo microscope MZSM-1A is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives.

Specifications :

Viewing head	Binocular
Zoom ratio	1 : 4.5
Eyepiece (Wide field eyepiece )	WF 10X/ Φ20 mm
Inclination	45°
Inter-pupillary distance	55 mm ⁓ 75 mm
Viewing field diameter	20 mm
Zoom objective	1X ⁓ 4.5X
Working distance	97 mm
Focusing range	100 mm
Incident illumination	100 V ⁓ 240 V
Transmitted illumination	100 V ⁓ 240 V
Video attachment	0.5X C-mount
Dimensions	380 × 320 × 535 mm
Weight	5.5 kg

Features : Wide viewing field and long working distance Displays sharp images Ergonomic design increases productivity Incident, transmitted LED illumination ( examine transparent sample ) Provision to connect the camera ( optional )

Applications: Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 10ZSMA1 Viewing head Binocular ( Inclined at 60° ) Interpupilary distance 55 mm ? 75 mm 10ZSMA2 Eyepiece Wide field eyepiece 5X 10ZSMA3 Eyepiece Wide field eyepiece 15X/ 16 mm 10ZSMA4 Eyepiece Wide field eyepiece 20X/ 12 mm 10ZSMA5 Eyepiece Wide field eyepiece 30X/ 12 mm 10ZSMA6 Eyepiece WF10X Eyepiece with cross line 10ZSMA7 Objective Zoom objective 0.7X ? 3X 10ZSMA8 Objective Auxiliary objective 2X W.D : 30 mm 10ZSMA9 Objective Auxiliary objective 0.75X W.D : 120 mm 10ZSMA10 Objective Auxiliary objective 0.5X W.D : 180 mm 10ZSMA11 Photo attachment Nikon ( Connect to Nikon digital single lens reflex ) 10ZSMA12 Photo attachment Canon ( Connect to Canon digital single lens reflex ) 10ZSMA13 Video attachment 1X C-mount 10ZSMA14 Attachment Dark field attachment 10ZSMA15 Attachment Movable stage 10ZSMA16 Attachment Temperature controlled stage and power supplier
