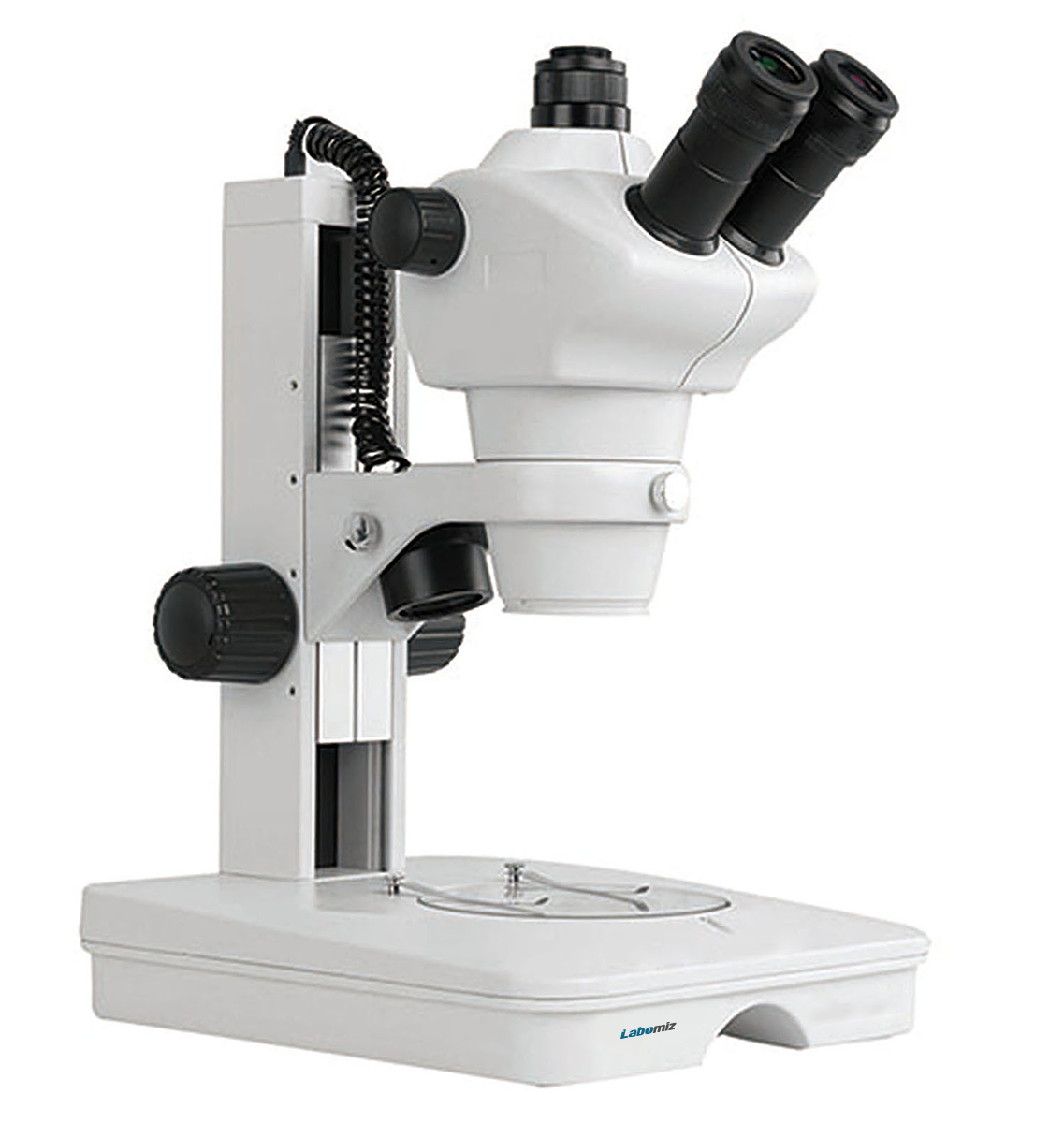

Description : Zoom stereo microscope MZSM-3B is a dissecting microscope featuring a low magnification range. This bench-top unit provides high quality 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives.

Specifications :

Viewing head	Trinocular
Zoom ratio	6.3 : 1
Eyepiece (Extra wide field eyepiece )	EW10X/ 22 mm
Stand ( Base )	Square
Inclination	45°
Inter-pupillary distance	52 mm ⁓ 75 mm
Zoom objective	0.8X ⁓ 5X
Working distance	115 mm
Focusing range	100 mm
Frosted glass plate diameter	100 mm
White and black round plate diameter	100 mm
Incident illumination	100 V ⁓ 240 V
Dimensions	360 × 350 × 410 mm
Weight	6 kg

Features : Optical system with higher zoom magnification range Sharp, high contrast image ( high quality optical component ) Ensures flat image at large depth field Incident, transmitted LED illumination ( examine transparent sample ) Attachment : 0.5X C-mount adaptor Optional photo adaptor

Applications: Used in academics, medical and industrial field. Used for circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 31ZSMA1 Viewing head Binocular ( Inclined at 45° ) Inter-pupillary distance 52 mm ?75 mm 31ZSMA2 Auxiliary objective 2X, WD : 45 mm 31ZSMA3 Attachment Photo adapter ( For Nikon, Canon, Olympus, Sony DSLR Cameras )
