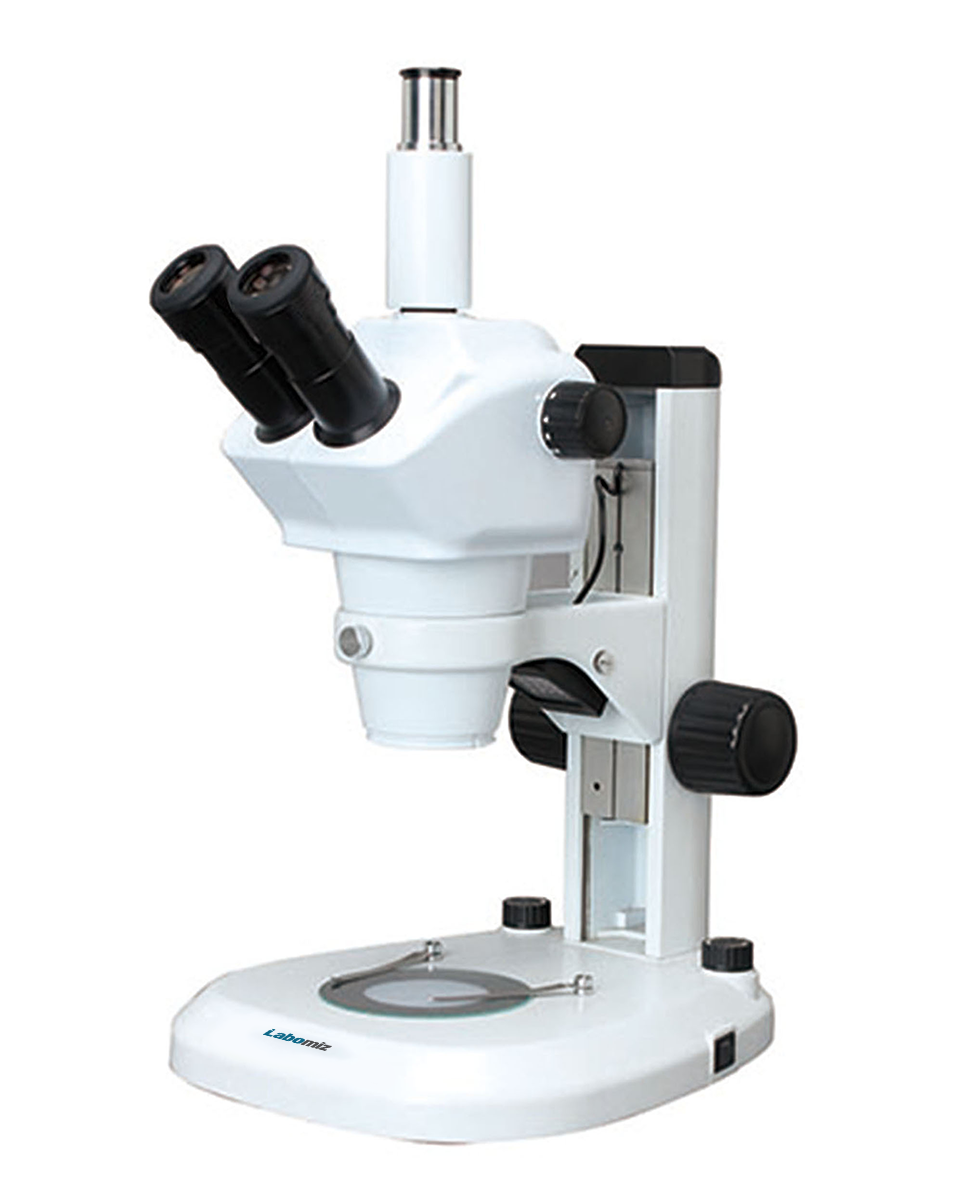

Description : Zoom stereo microscope MZSM-4B is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provide very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span.

Specifications :

Viewing head	Trinocular
Zoom ratio	6.3 : 1
Eyepiece (Extra wide field eyepiece )	EW10X/ 22 mm
Inclination	45°
Inter-pupillary distance	57 mm ⁓ 75 mm
Zoom objective	0.8X ⁓ 5X
Working distance	115 mm
Focusing range	105 mm
Glass insert plate diameter	100 mm
White and black round plate diameter	100 mm
Incident illumination	100 V ⁓ 240 V
Transmitted illumination	100 V ⁓ 240 V
Dimensions	380 × 320 × 540 mm
Weight	6.5 kg

Features : Wide viewing field and long working distance Sharp, striking contrast image ( high quality optical component ) Ensures flat image at large depth field Incident, transmitted LED illumination ( examine transparent sample ) Provision to connect the camera ( optional ) Cold light and ring light ( optional ) Photo and video attachment ( optional )

Applications: Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 41ZSMA1 Viewing head Digital binocular ( Inclined at 45° ) Interpupillary distance : 57 mm ? 75 mm 3.2 MP (2048×1536), ScopeImage 9.0 Software 41ZSMA2 Eyepiece Wide field eyepiece 15X/ ? 16 mm 41ZSMA3 Eyepiece WF20X/ ?12 mm 41ZSMA4 Eyepiece WF30X/ ?12 mm 41ZSMA5 Eyepiece 10X Eyepiece with cross line 41ZSMA6 Objective Auxiliary objective 0.5X, W.D : 220 mm 41ZSMA7 Objective Auxiliary objective 0.7X, W.D : 125 mm 41ZSMA8 Objective Auxiliary objective 2X, W.D : 45 mm 41ZSMA9 Adapter 0.5X Auxiliary objective 41ZSMA10 Polarizing attachment Polarizer and analyzer 41ZSMA11 Photo attachment Nikon ( Connect to Nikon digital single lens reflex ) 41ZSMA12 Photo attachment Canon(Connect to Canon digital single lens reflex) 41ZSMA13 Vedio attachment 1X C-mount 40ZSMA14 Attachment Dark field attachment 40ZSMA15 Attachment Movable stage 40ZSMA16 Attachment Temperature controlled stage and power supplier
