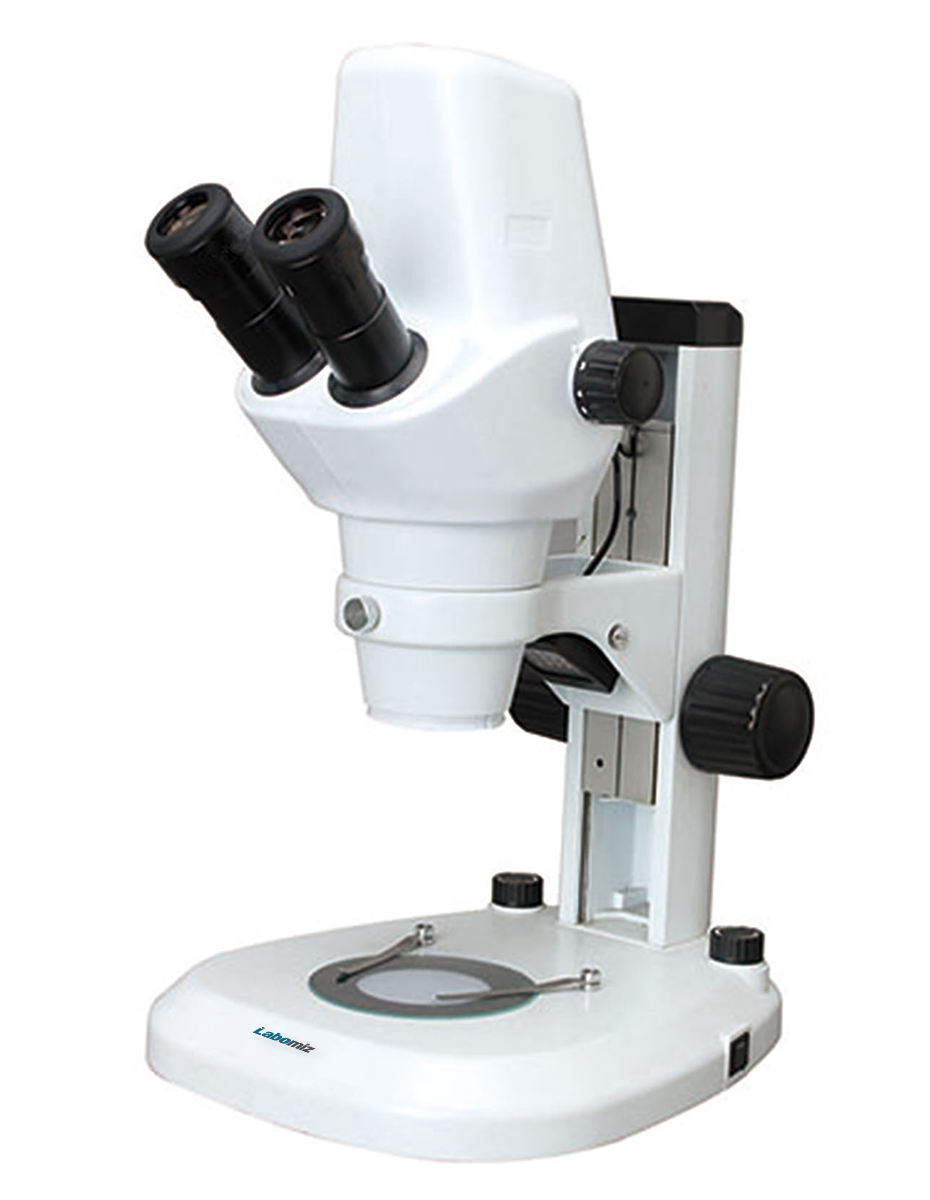

Description : Zoom stereo microscope MZSM-4C is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provide very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span.

Specifications :

Viewing head	Digital binocular
Zoom ratio	6.3 : 1
Eyepiece (Extra wide field eyepiece )	EW10X/ 22 mm
Inclination	45°
Inter-pupillary distance	57 mm ⁓ 75 mm
Zoom objective	0.8X ⁓ 5X
Working distance	115 mm
Focusing range	105 mm
Glass insert plate diameter	100 mm
White and black round plate diameter	100 mm
Incident illumination	100 V ⁓ 240 V
Transmitted illumination	100 V ⁓ 240 V
Dimensions	460 × 380 × 840 mm
Weight	8 kg

Features : Wide viewing field and long working distance Sharp, striking contrast image ( high quality optical component ) Ensures flat image at large depth field Incident, transmitted LED illumination ( examine transparent sample ) Provision to connect the camera ( optional ) Cold light and ring light ( optional ) Image processing software : ScopeImage 9.0 Photo and video attachment ( optional )

Applications: Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 42ZSMA1 Viewing head Trinocular ( Inclined at 45° ) Interpupillary distance : 57 mm ? 75 mm 42ZSMA2 Eyepiece Wide field eyepiece 15X/ ?16 mm 42ZSMA3 Eyepiece WF20X / ?12 mm 42ZSMA4 Eyepiece WF30X/ ?12 mm 42ZSMA5 Eyepiece 10X Eyepiece with cross line 42ZSMA6 Objective Auxiliary objective 0.5X, W.D : 220 mm 42ZSMA7 Objective Auxiliary objective 0.7X, W.D : 125 mm 42ZSMA8 Objective Auxiliary objective 2X, W.D : 45 mm 42ZSMA9 Adapter 0.5X Auxiliary objective 42ZSMA10 Polarizing attachment Polarizer and analyzer 42ZSMA11 Photo attachment Nikon ( Connect to Nikon digital single lens reflex ) 42ZSMA12 Photo attachment Canon(Connect to Canon digital single lens reflex) 42ZSMA13 Vedio attachment 1X C-mount 40ZSMA14 Attachment Dark Field attachment 40ZSMA15 Attachment Movable stage 40ZSMA16 Attachment Temperature controlled stage and power supplier
