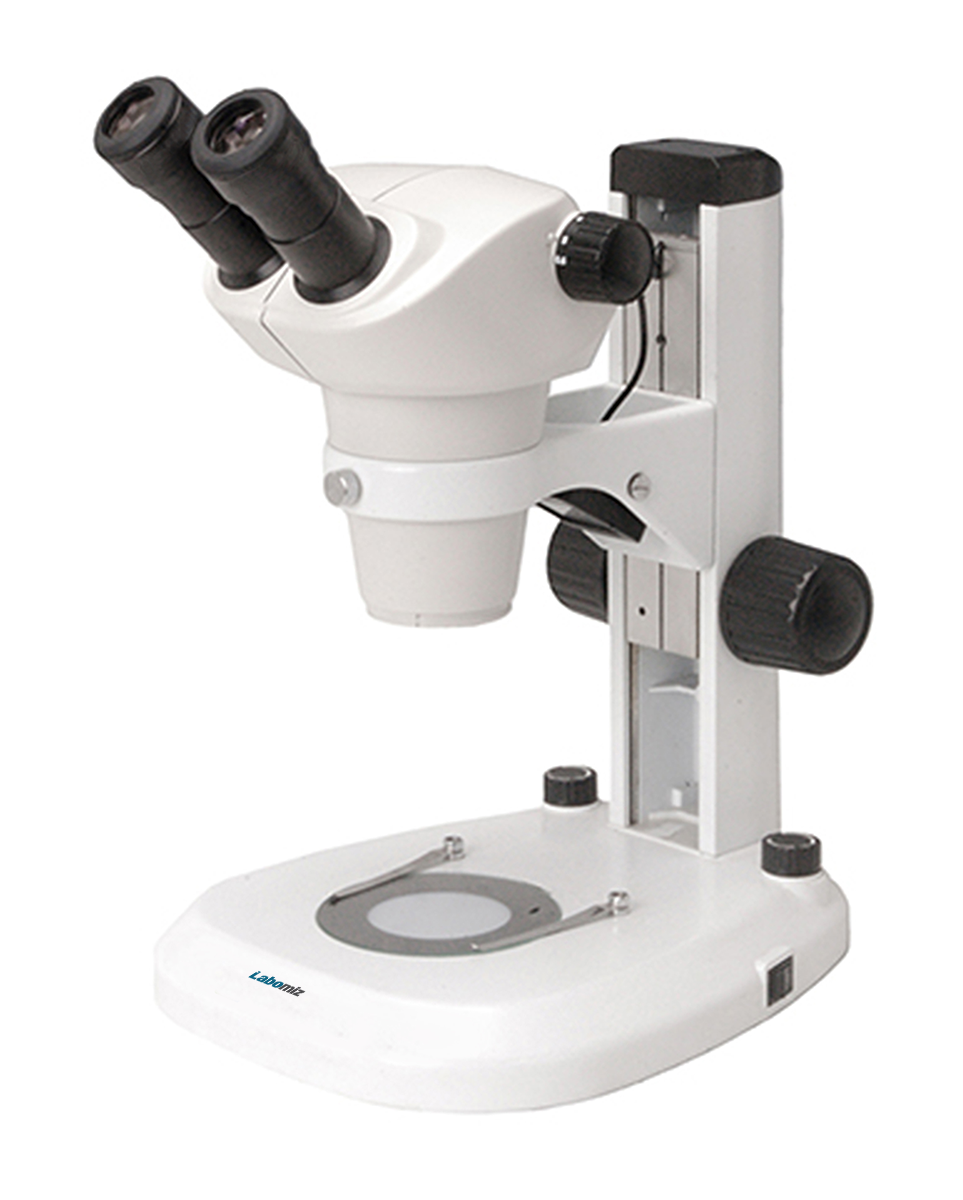

Description : Zoom stereo microscope MZSM-5A is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image throughout the zoom range. Coarse focus knob with tension adjustment aids in mobility of the objective lenses. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.

Specifications :

Viewing head	Binocular
Zoom ratio	8.3 : 1
Eyepiece (Extra wide field eyepiece )	WF10X/ Φ23 mm
Inclination	45°
Inter-pupillary distance	55 mm ⁓ 75 mm
Zoom objective	0.6X ⁓ 5X
Working distance	115 mm
Focusing range	105 mm
Glass insert plate diameter	100 mm
White and black round plate diameter	100 mm
Incident illumination	100 V ⁓ 240 V
Transmitted illumination	100 V ⁓ 240 V
Dimensions	380 × 320 × 540 mm
Weight	7.5 kg

Features : Large viewing field and long working distance Sharp, striking contrast image ( high quality optical component ) Ensures flat image at large depth field Ergonomic design increases productivity Incident, transmitted LED Illumination ( examine transparent sample ) Video and photo adaptor ( optional )

Applications: Used in academic, medical and industrial field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 50ZSMA1 Eyepiece Wide field eyepiece 15X/ ?16 mm 50ZSMA2 Eyepiece WF20X/ ?12 mm 50ZSMA3 Eyepiece WF30X/ ?9 mm 50ZSMA4 Objective Auxiliary objective 0.5X, WD : 220 mm 50ZSMA5 Objective Auxiliary objective 0.7X, WD : 125 mm 50ZSMA6 Objective Auxiliary objective 2X, WD : 45 mm 50ZSMA7 Video adapter 30 mm adapter ring for 23.2 mm eyepiece adapter 50ZSMA8 Video adapter 0.45X/0.5X C-mount adapter 50ZSMA9 Photo adapter Nikon or Canon DSLR camera
