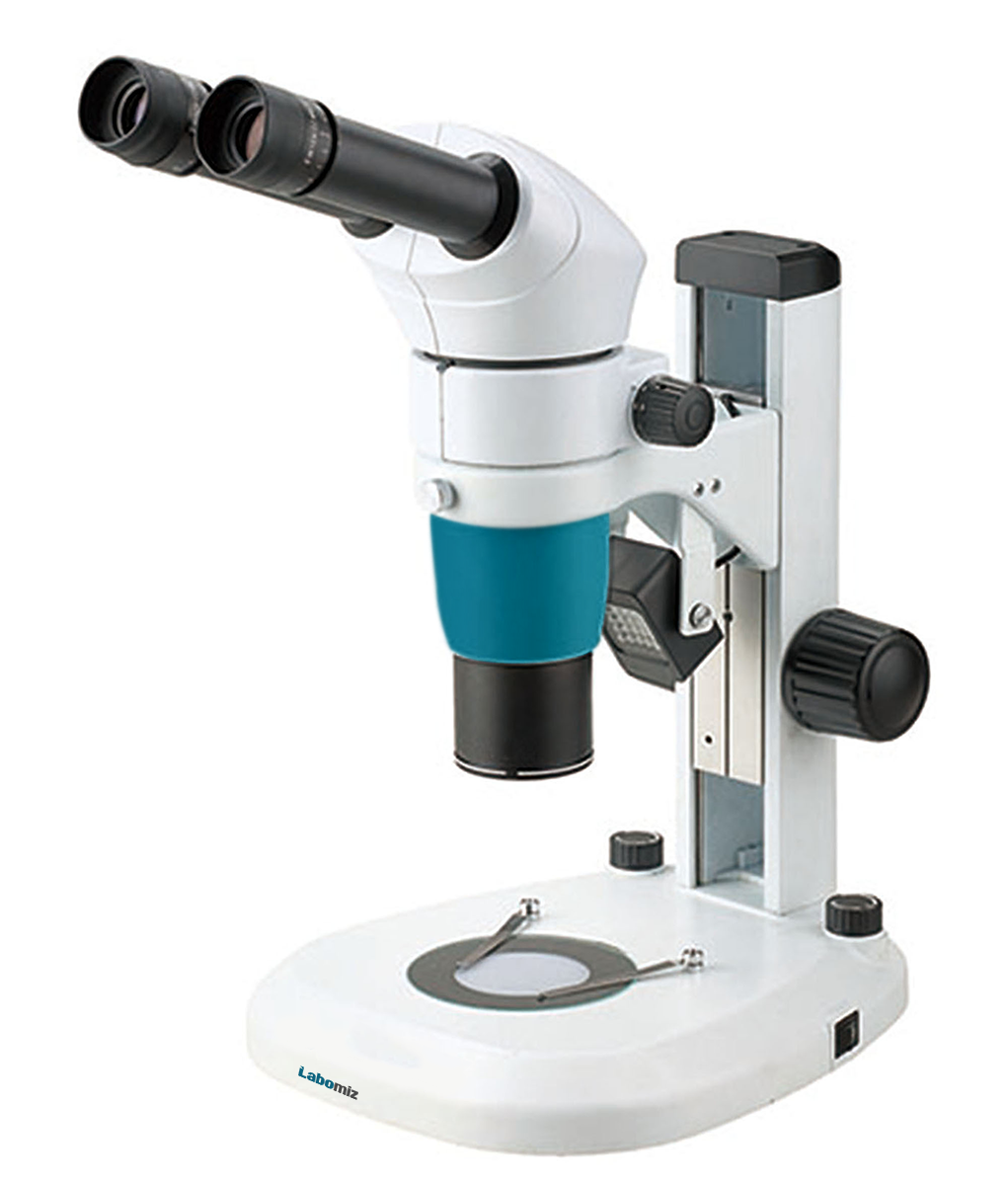

Description : Zoom stereo microscope MZSM-7B is a dissecting microscope featuring a low magnification range. This bench-top unit on a post stand provides very clear upright, un-reversed 3-D image remain in focus throughout the zoom range. Magnification range and working distance can be expanded using optional eyepieces and auxiliary objectives. LED light providing uniform illumination with long life span of 60,000 hours.

Specifications :

Viewing head	Binocular
Zoom ratio	1: 8
Eyepiece (Extra wide field eyepiece )	EW10X/ Φ22 mm
Inclination	20°
Inter-pupillary distance	55 mm ⁓ 75 mm
Zoom objective	0.8X ⁓ 6.4X
Objective	Plan achromatic objective 1X W.D : 78 mm
Focusing range	105 mm
Dimensions	360 × 310 × 670 mm
Weight	8 kg

Features : Infinity parallel zoom optical system ( excellent image quality ) large viewing field and long working distance Coarse focus knob with tension adjustment to move the objective lenses Ergonomic design increases productivity Transmission and reflection illumination ( Adjustable ) Video and photo adaptor ( optional )

Applications: Used in Industrial, medical and scientific research field. Used for Circuit board repair and inspection, SMT work, electronics electronic inspection, coin collecting, gemstone setting, engraving, repair and inspection of small parts.

Optional Accessories: Accessory No Accessory Accessory Specification 71ZSMA1 Viewing head Binocular ( Tilt, Inclination : 5°? 35° ) Interpupilary distance : 55 mm ? 75 mm 71ZSMA2 Eyepiece WF15X/ ?16 mm 71ZSMA3 Eyepiece WF20X/ ?12 mm 71ZSMA4 Eyepiece WF30X/ ? 12 mm 71ZSMA5 Eyepiece 10X Eyepiece with cross line 71ZSMA6 Objective Achromatic objective 0.3X, W.D : 276 mm 71ZSMA7 Objective Plan apochromatic objective 0.5X, W.D : 126 mm 71ZSMA8 Objective Plan achromatic objective 2X, W.D : 32.5 mm 71ZSMA9 Adaptor 0.5X objective 71ZSMA10 Focusing unit Coaxial coarse and fine focusing stand 71ZSMA11 Polarizing attachment Polarizer and analyzer 71ZSMA12 Illumination LED ring illuminator 71ZSMA13 Illumination Fluorescent ring illuminator 71ZSMA14 Illumination Cold light illumination with dual light guide 71ZSMA15 Illumination Coaxial illuminator 71ZSMA16 Photo attachment Nikon ( Connect to Nikon digital single lens reflex ) 71ZSMA17 Photo attachment Canon ( Connect to Canon digital single lens reflex ) 71ZSMA18 Video attachment 1X C-mount 71ZSMA19 Attachment Dark field attachment 71ZSMA20 Attachment Movable stage 71ZSMA21 Attachment Temperature controlled stage and power supplier 70ZSMA22 Attachment Epi-fluorescent attachment 71ZSMA23 Attachment Iris diaphragm 71ZSMA24 Attachment Beamsplitter ( one port ) 71ZSMA25 Attachment Beamsplitter ( two ports ) 71ZSMA26 Attachment LCD attachment
